ADP200 Application PID-IMM User Manual Pag. 7 of 80
Step 1: Mould opening
Step 2: Multiple stroke ejection cycle
Step 3: Recycle
Step 4: Mould closing
Step 5: Carriage forward
Step 6: Injection
Step 7: Decompression
Step 8: Charge
Step 9: Carriage back
The Hybrid IMM PID function control single pump and multi pump configurations.
The possible control mode are:
- Single Pump configuration
- Multi pump configuration working in Convergent Mode
- Multi pump configuration working in Convergent & Divergent mode
The multi-pump convergent mode is used on bigger machines (> 300-400 Tons), allows operation of 1 master
pump, controlled by an ADP200 running flow/pressure control, and 1 or more slave (Max. 6 slaves) pumps
that operate speed (flow) control only.
Master pump can activate slave pumps according to flow threshold; slave pump speed is set from master to
slave via CANbus interface.

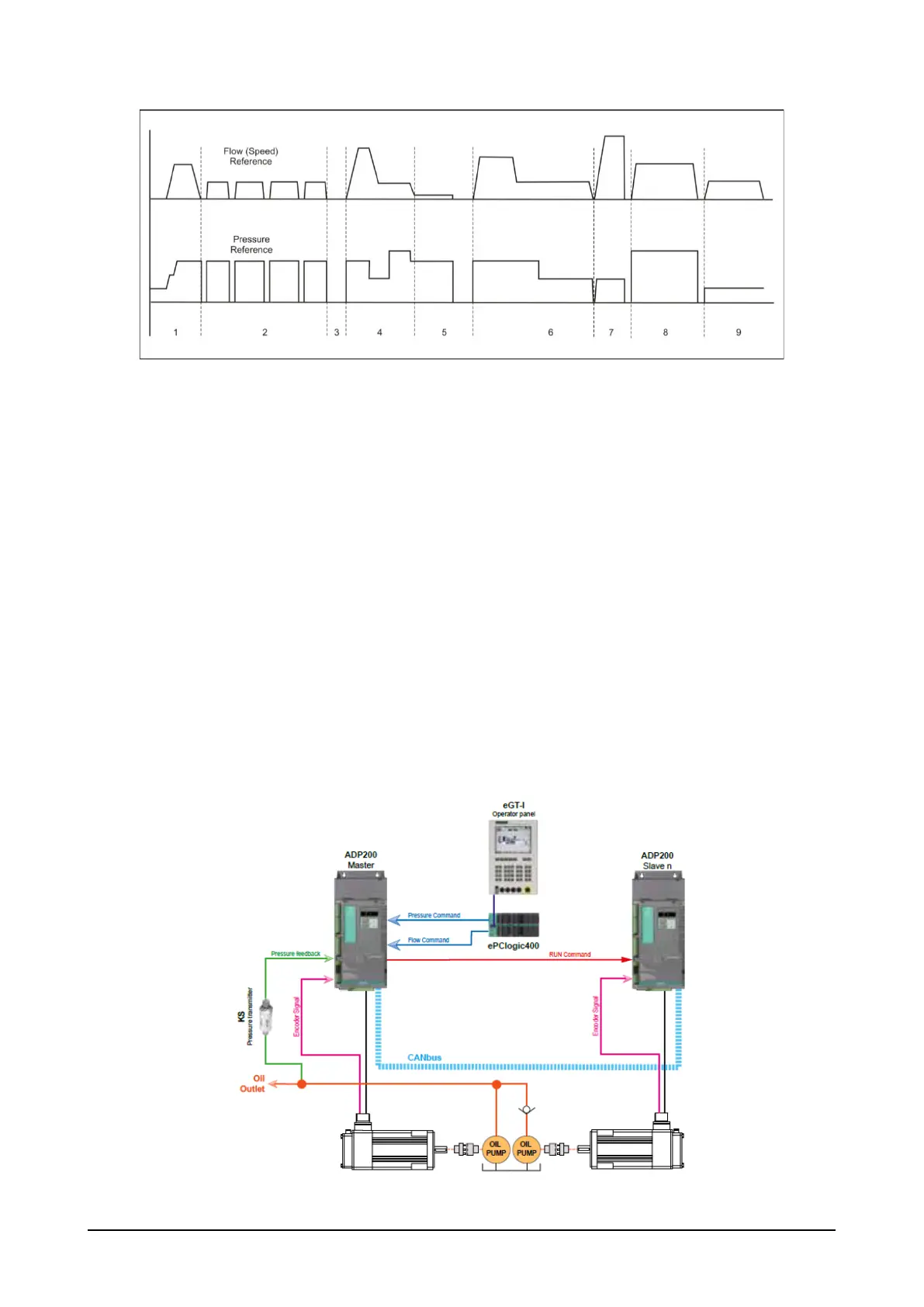

Figure 4: Multi Pump in Convergent Mode
