Generex CS121L - CE- and UL-Certification; Cable and Circuit board configuration, Pin;AUX-Ports, SensorMan

107
CS121-L
CS121-C
CS121 Slot
Power supply
12 V DC
12 V DC
12 V DC
Power output
350mA
100mA bei 12V
100mA bei 12V
Size
69x126 mm
69x126 mm
60x120 mm
Ethernet connections
10/ 100Base-T
10/ 100Base-T
10/ 100Base-T
RS-232 interface
2
2
2
LED’s
4
4
4
DIP Switches
2
2
2
Operating temperature
0 – 40 °C
0 – 40 °C
0 – 40 °C
Humidity during normal
operations
10-80%, no condensation
B. CE- and UL-Certification
Both models, CS121L and CS121SC, are certificated by Underwriters Laboratories Inc. for the
US and Canada with the power supply 12 V DC, 300 mA.
As well, for both hardware specifications 121 and 131 of CS121-Adapter a certification of
Conformity has been drawn up. Please see the download page at www.generex.de to get a
copy of the certifications and documents.
C. Cable and Circuit board configuration, Pin/AUX-Ports, SensorMan

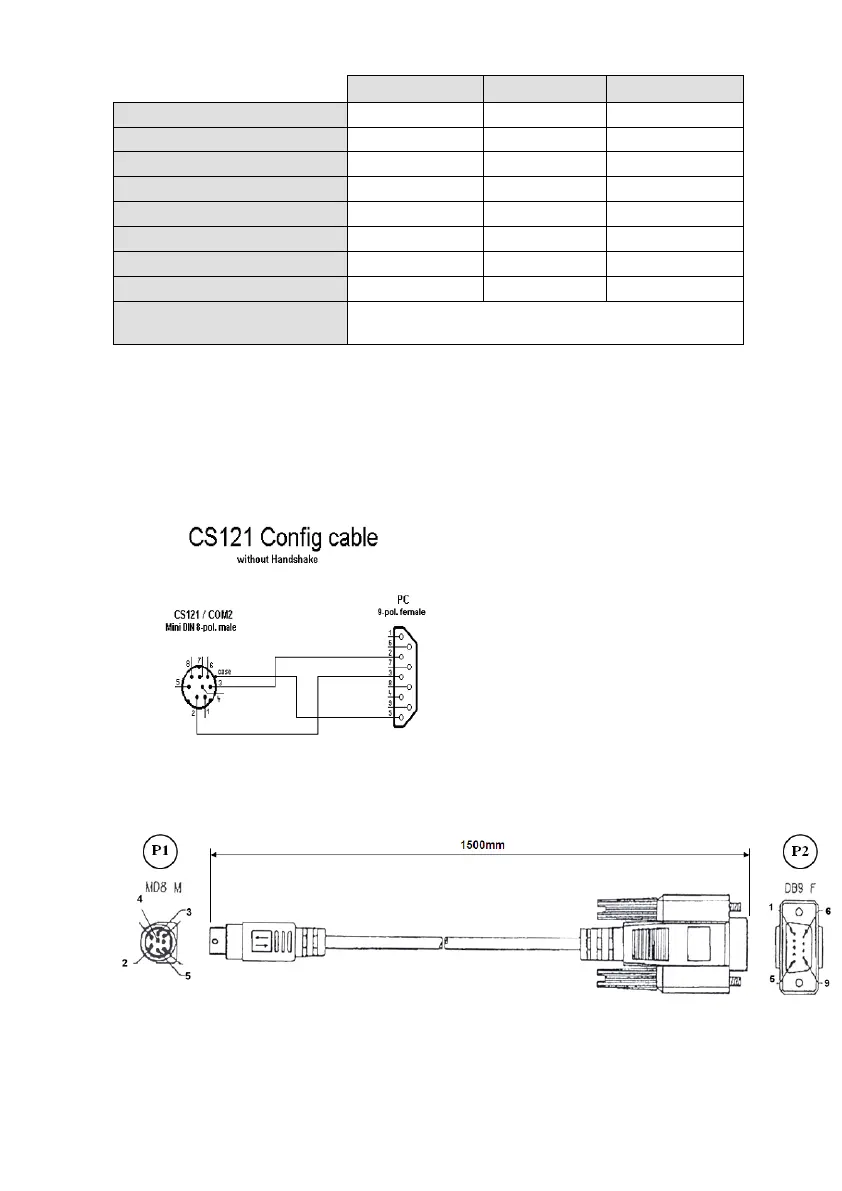

Figure 137: Cable configuration HW121 COM2
CS121 HW121/HW131 configuration cable with handshake
