92

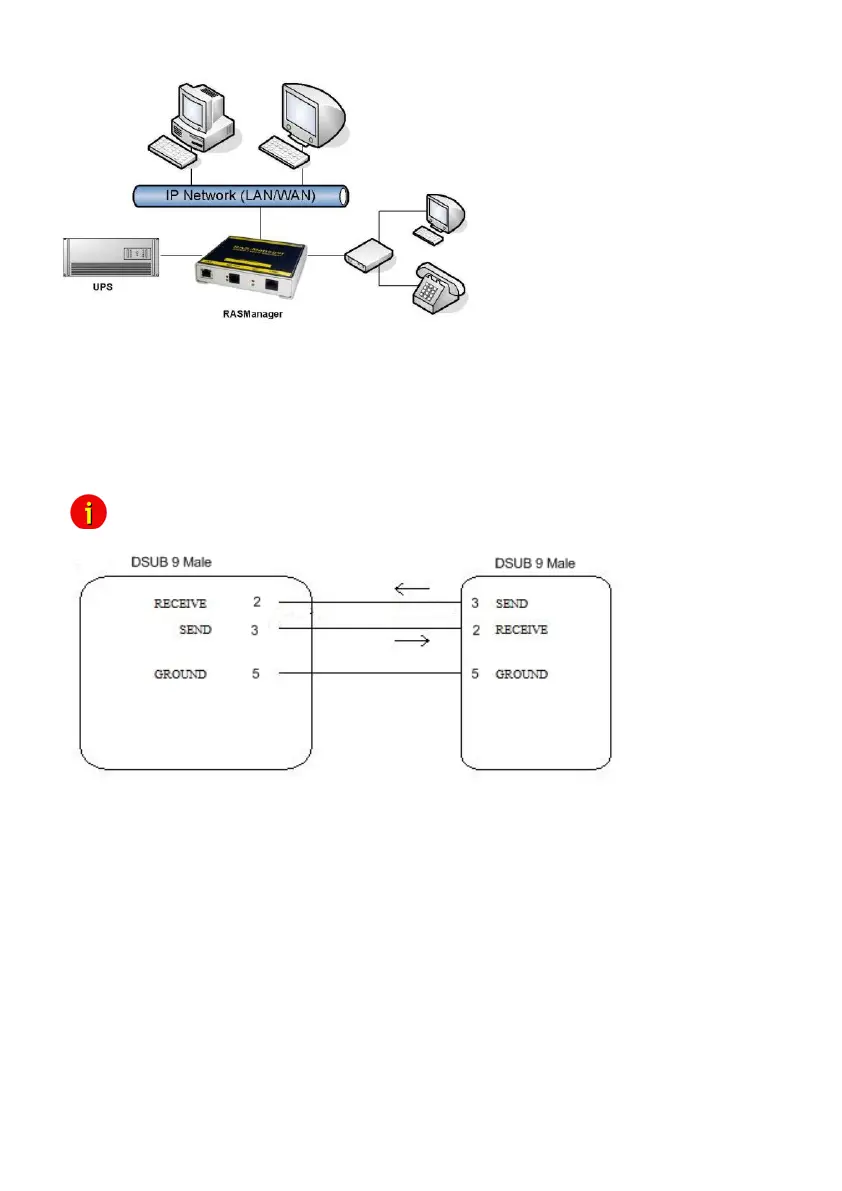

Figure 113: RASMANAGER network integration
7.5 GSM Modem – Notification via SMS
The CS121 firmware version 4.17.x provides a new function, which enables the notification via
SMS. Use the CS121 configuration cable (not included) and an adapter-connector (PINs 2, 3,
5, GENEREX order number: GSM_A) for the connection of the GSM modem and the CS121.
Select into the menu “COM2 & AUX” the GSM Modem” for the COM2 mode.
Note: It is required to disable the PIN-code request of the SIM-card.
Figure 114: PIN Adjustment Adapter-Connector GSM_A
Alternative, you can make a Mini8-DSUB9 cable for the Siemens GSM TMA T35i Modem by
yourself, as follows:
