50
These 4 Emails indicate the status of the digital alarm contacts of the sensors (for Emergency
OFF, fire extinguisher and the like) connected with the SENSORMANAGER, showing either
the status is NORMAL or that nothing is connected.
01/17/2007,17:52:13,MAIL: subject "CS121 Event 70" successfully sent
This Email shows that no SENSORMANAGER is connected although the CS121 is configured
as having a connection to a Sensormanager. This informs the ADMIN that the CS121 is
incorrectly configured. In this case, the user should correct the settings.
The UPS data will be logged with timestamp into the CS121 DataLog.

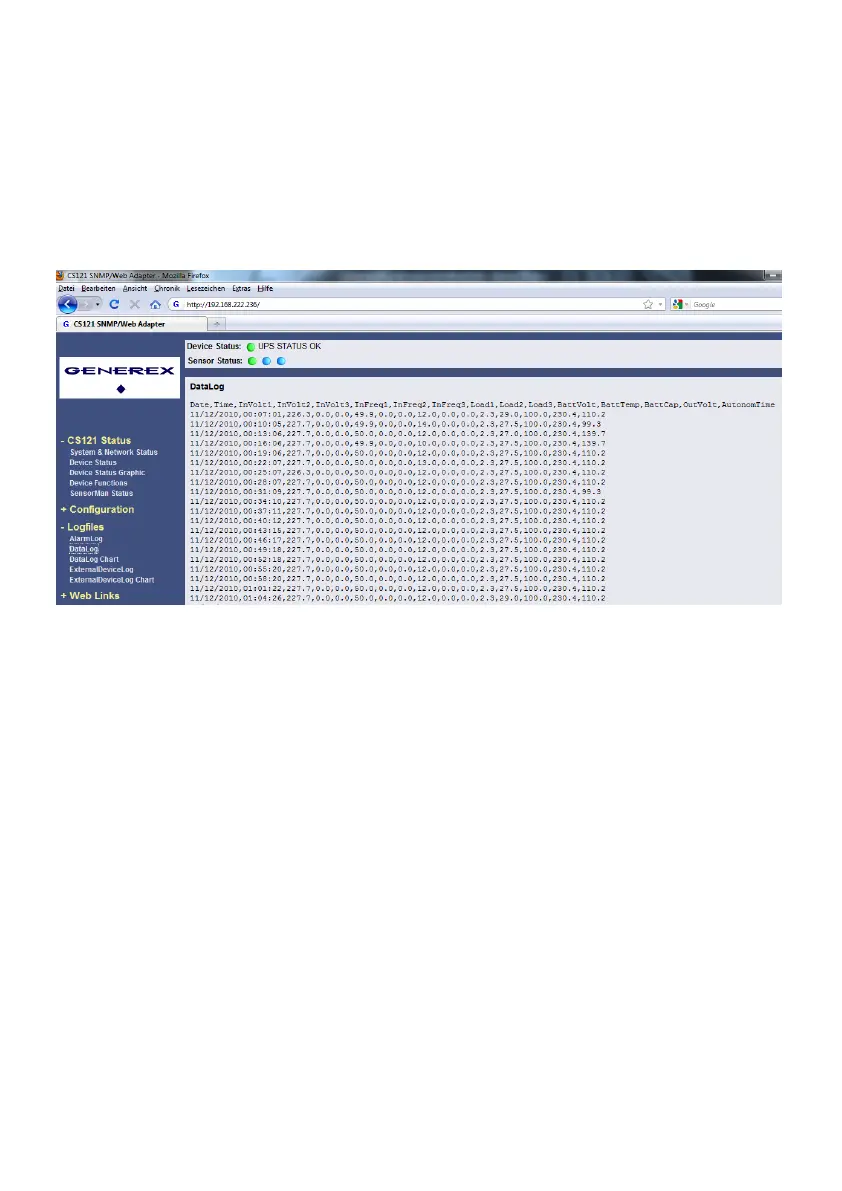

Figure 47: HTTP – CS121 DataLog
The data of the connected devices (e. g. temperature sensor) will be logged into the CS121
ExternalDeviceLog.
