84

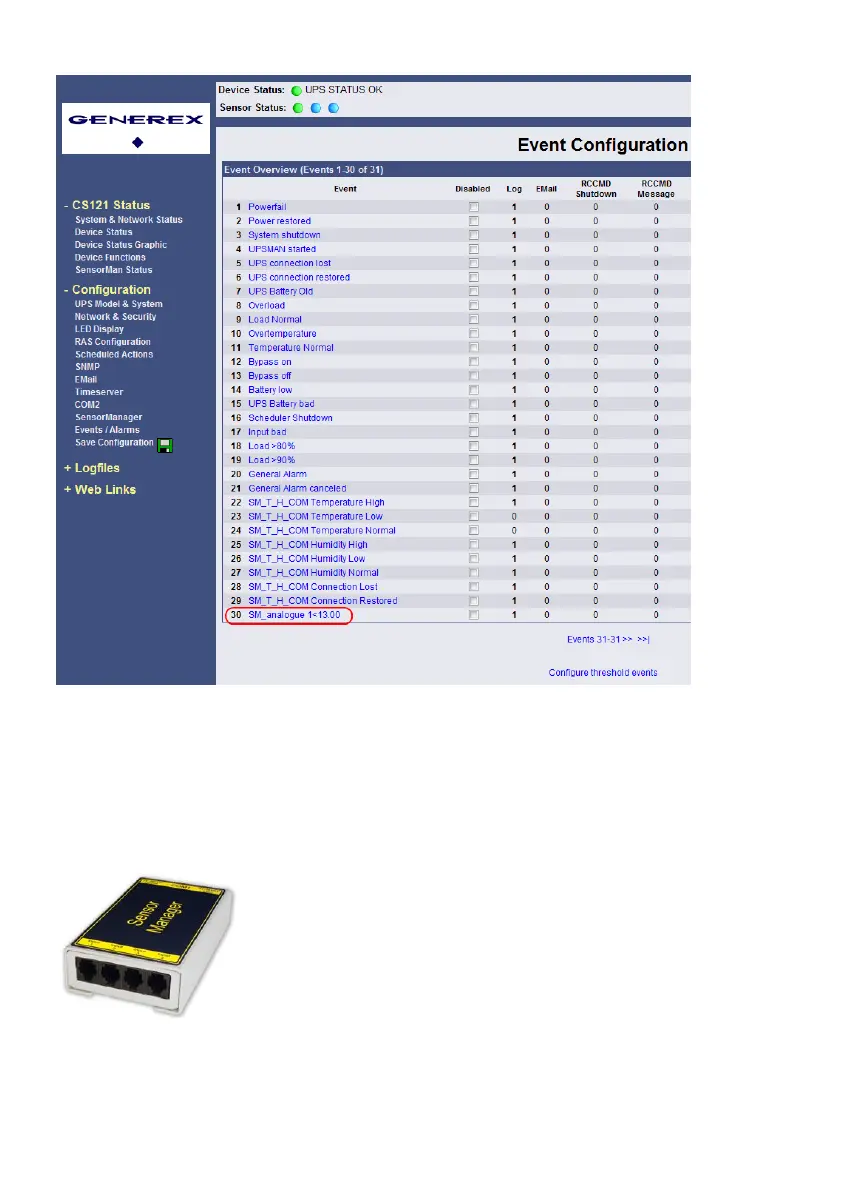

Figure 102: CS121-Configuration Threshold Event for SM_analogue 1
7.3 SENSORMANAGER & SENSORMANAGER II
7.3.1 General information
If more than 1 or 2 environmental values are wanted to manage, than the SENSORMANGER
(SensorMan) is your choice. This device is a data measurement and collecting unit which
allows the individual measurement and monitoring of 8 analog measurement devices (0-10V)
and 4 digital alarm inputs or 4 outputs (open collectors).
Figure 103: Sensor Manager (SensorMan)
The SENSORMANAGER is a system extension for the CS121 Professional, BACS
WEBMANAGER, CS121 Mini und CS121_R_II.Universal Remote Sensor Control Box for the
monitoring of temperature, humidity and many other types of sensors as well as for the the
management of digital input/output signals. 8 analog inputs (0-10V), + 4 digital input and/or
outputs (48 V 500mA). Digital Outputs are configurable as normally open or as normally
