Generex CS121L - Figure 47: HTTP - CS121 Externaldevicelog; Figure 48: HTTP - CS121 UPS Events

51

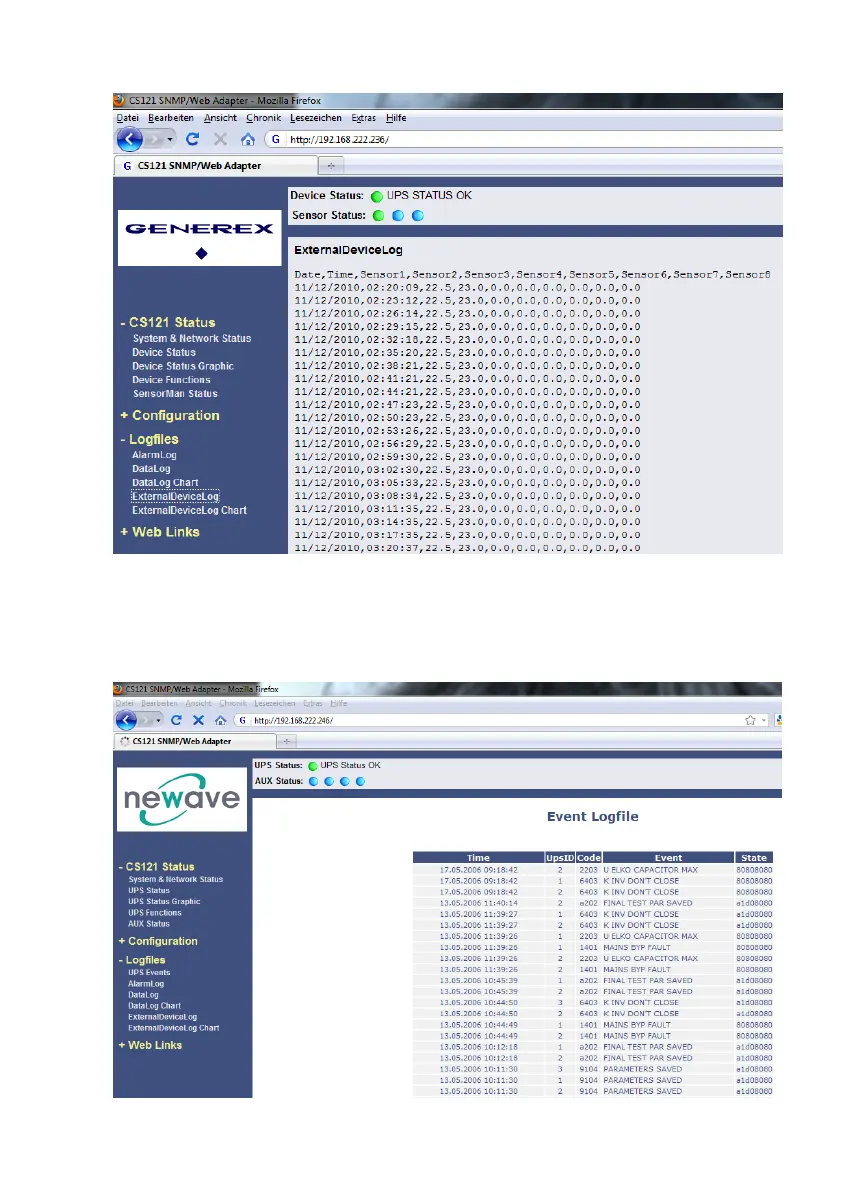

Figure 48: HTTP – CS121 ExternalDeviceLog
In figure 62 the logging of a SM_T_H_COM is displayed, sensor 1 for the temperature, sensor
2 for the humidity.
At unify UPS their events will be imported out of the UPS directly and are displayed into the
CS121 menu LogFiles, “UPS Events”.
Figure 49: HTTP – CS121 UPS Events
