83

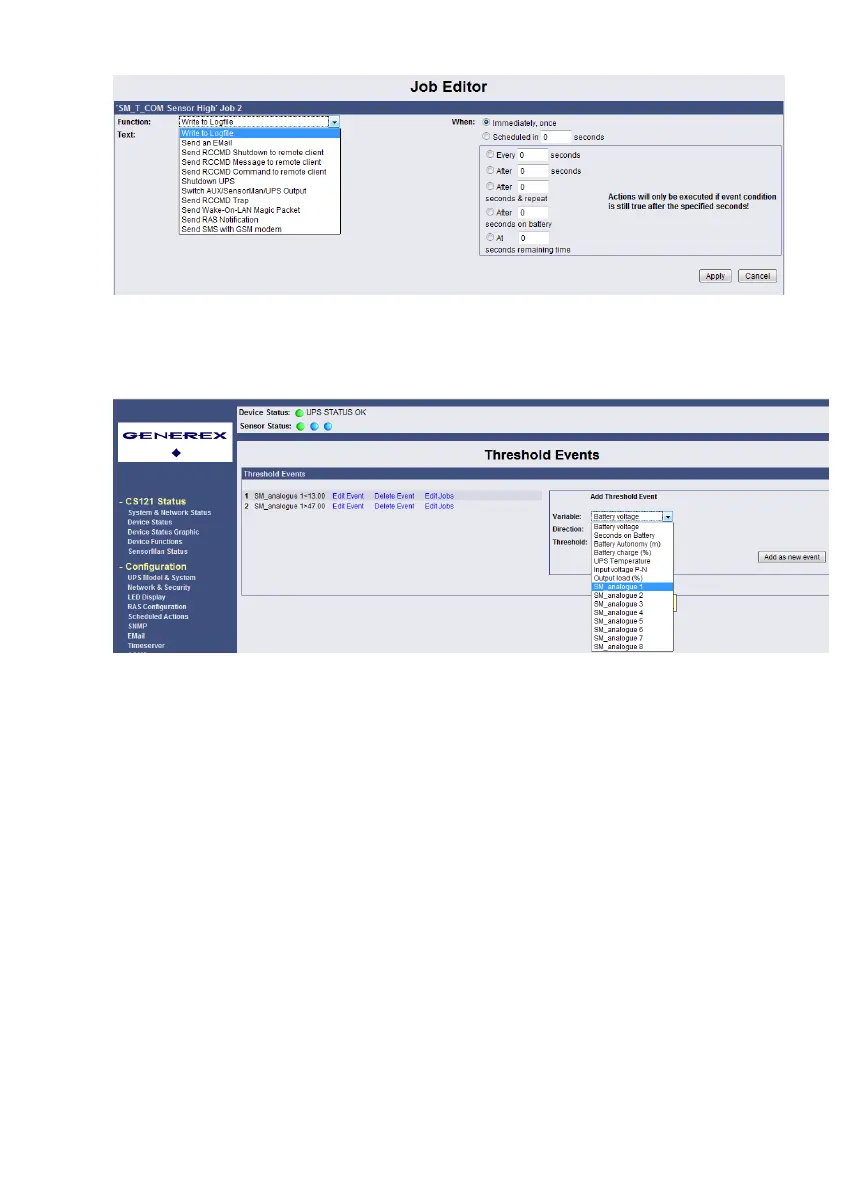

Figure 100: CS121- SM_T_COM Functions
The CS121 firmware version 4.26.x provides the option to define threshold events for the
analogue inputs. Click the “Configure Threshold Events” button into the CS121
“Events/Alarms” menu.
Figure 101: CS121-Configuration Threshold Events of analogue Inputs
In this example, a below threshold of 13 was defined for SM_analogue 1, in this case for the
temperature in °C, which will appear into the Event Configuration, after you executed the
“Save, Exit & Reboot” function.
