4.5.3.2 Installation
Install the bulb back to the original position in the reverse take
turns of disassembly. Install the bulb back to the original
position in the reverse take turns of disassembly.

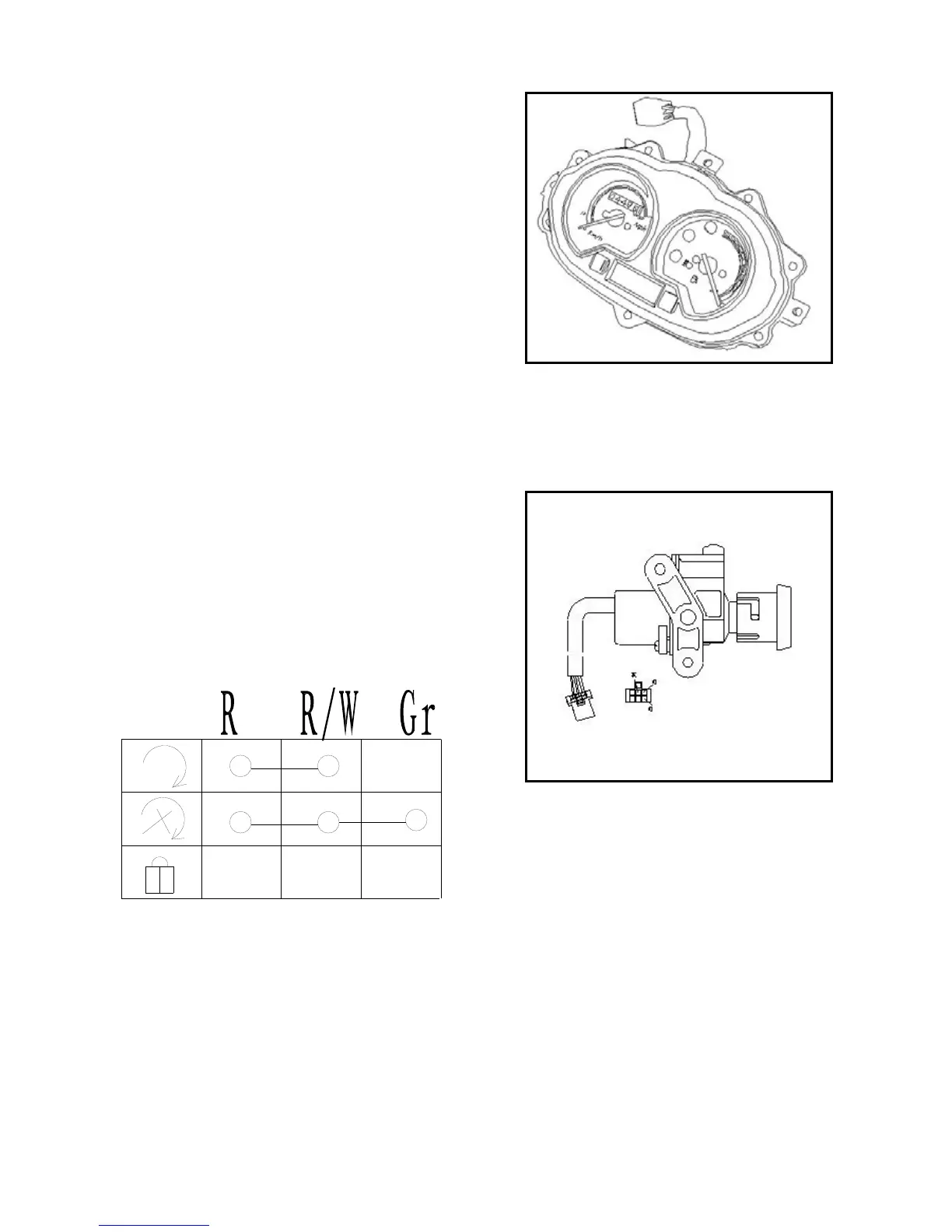

4.6 Instrument
Remove set screws of front shield of handle pipe.
Remove set screws of instrument.
Disconnect odometer wire connector to remove the instrument..
Install the speed indicator back to the original position in the
reverse order of disassembly.
4.7 Main switch
4.7.1 Inspection
Remove front cover twin-lamp panel.
Remove foot protection plate.
Dismantle the wire joint of the main switch.
The conduction checking of the joint terminal.
4.7.2 Replacement of main switch
Remove front cover twin-lamp panel.
Remove foot protection plate.
Disassemble the setscrews, unload the fixing pad of the
main switch.
Disassemble the setscrews and replace the main switch.
Wiring logic diagram
