Install the clutch-pressing spring and clutch on the driven wheel.
Use clutch spring to compress and compose. After compression, install the locking nut.
*Attention:
the spring should be compressed properly. Otherwise, the spring will be damaged.
14.7 Installation
The order of assembling the driven disk, clutch and driven
wheel is opposite to that of disassembly.

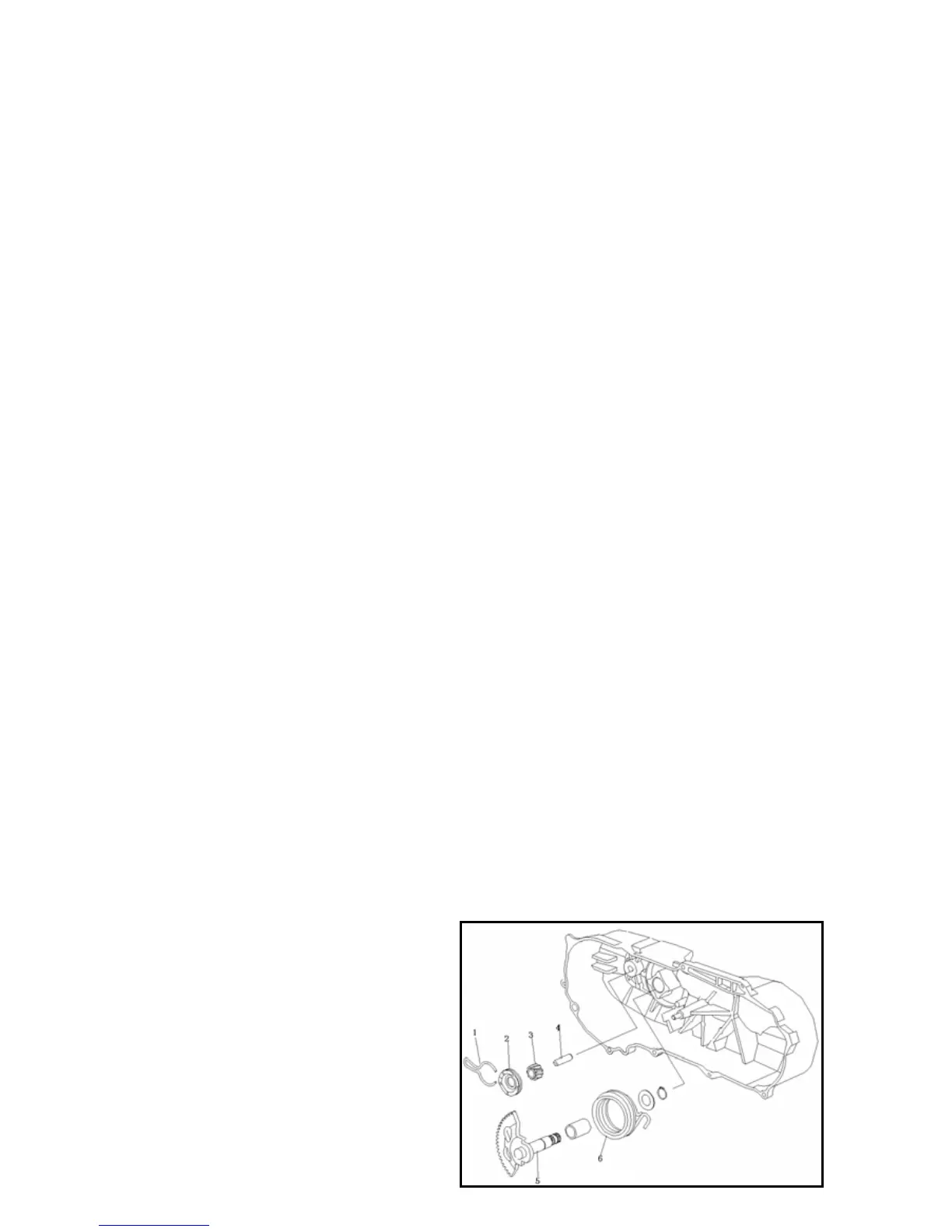

14.8 Foot start mechanism
Disassembly /Check
Dismount left crankcase cover.
Loosen screw, take out plate.
Take off start claw component.
Take off start shaft component.
Inspect the wear condition of the start shaft
Inspect the wear condition of the start shaft sleeve,
