Generic Race 50 - Fault Diagnosis; Front Hydraulic Brake

108
Assemble bolt for the front brake cylinder components 22-29 N·m
Fixing bolt of rear brake rocker arm 5-9 N·m
Fixing bolt of rear brake rocker arm 100-113 N·m
5.2 Fault diagnosis
Brake
Bad braking quality Slow brake or handle tightening
1. Unfavorable brake adjustment 1. Unfavorable brake adjustment
2. Brake shoe and friction lining module worn 2. Brake shoe and friction lining module worn
3. Brake shoe and friction lining module installed improperly 3. Brake shoe and friction lining module installed
improperly
4. Brake shoe, friction lining module and brake disc contaminated
Strange sound in braking
1. Brake shoe and friction lining module worn
2. Brake shoe, friction lining module and brake disc contaminated
5.3 Front hydraulic brake
5.3.1 Disassembly
*Attention
•Friction lining module replacement.
•If a brake pad is reused, mark a signal on its side before
disassembly so that it can be installed to the original
position.
Remove the following modules from right grip and front
shock absorber respectively:

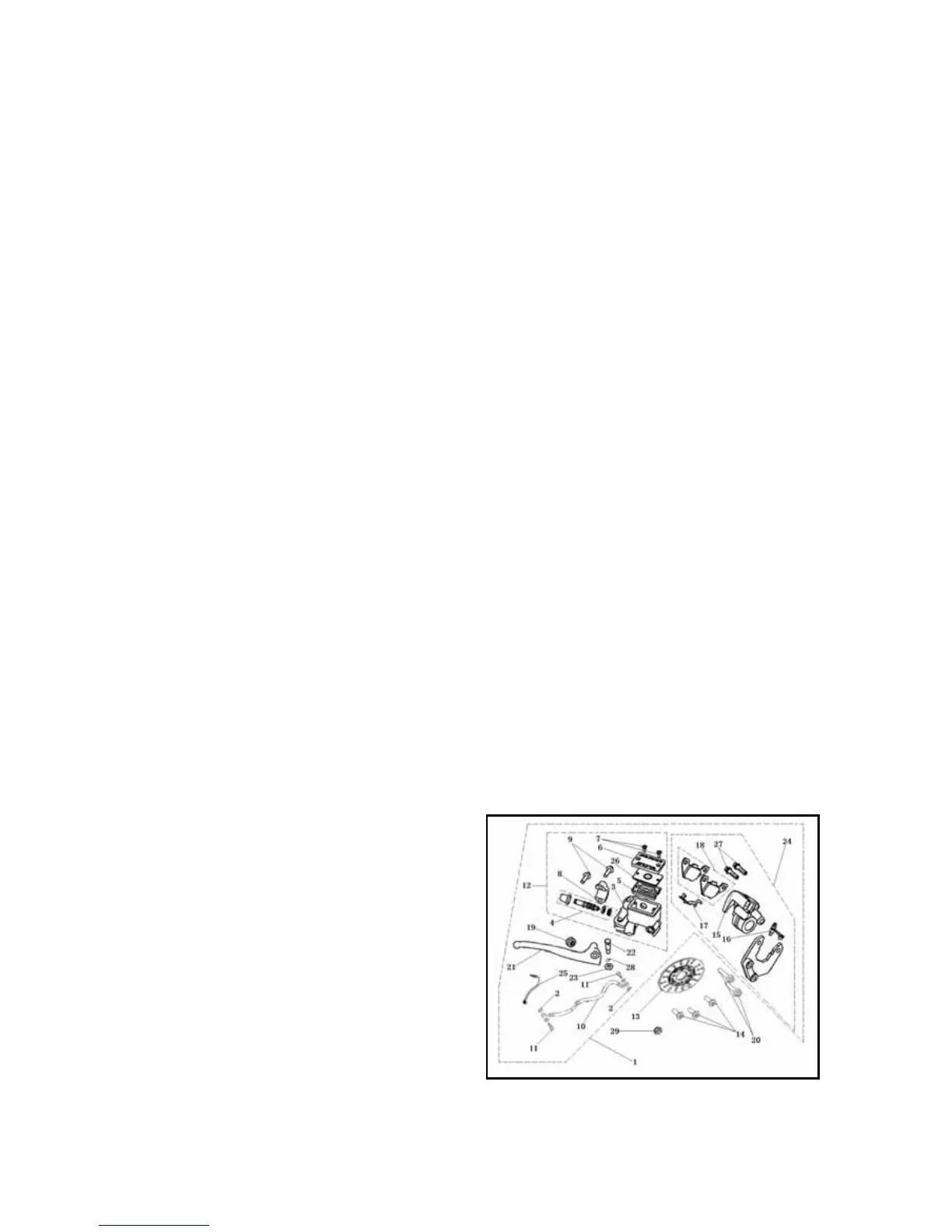

Front brake:
1. Hydraulic brake lever (21)
2. Oil pump body module (3)
3. Brake hose assembly (10)
4. Brake cylinder module (15)
5. Brake disc (13)
