109
Note: Detailed decomposition map can be seen on P78
*Attention
•The braking components can not be spoiled by oil stain in installation or disassembly.
•Rinse with stipulated cleaning agent in order to avoid reduction of braking quality.
Unclamp the fixed bolt of the brake cylinder components.
Antle the following components from the front absorber.
Disassemble the front wheel spindle.
Unload the front wheel.
Remove the brake disk from the front wheel.
5.3.2 Inspection
Inspect whether the brake pad is worn out and
replace it if necessary.

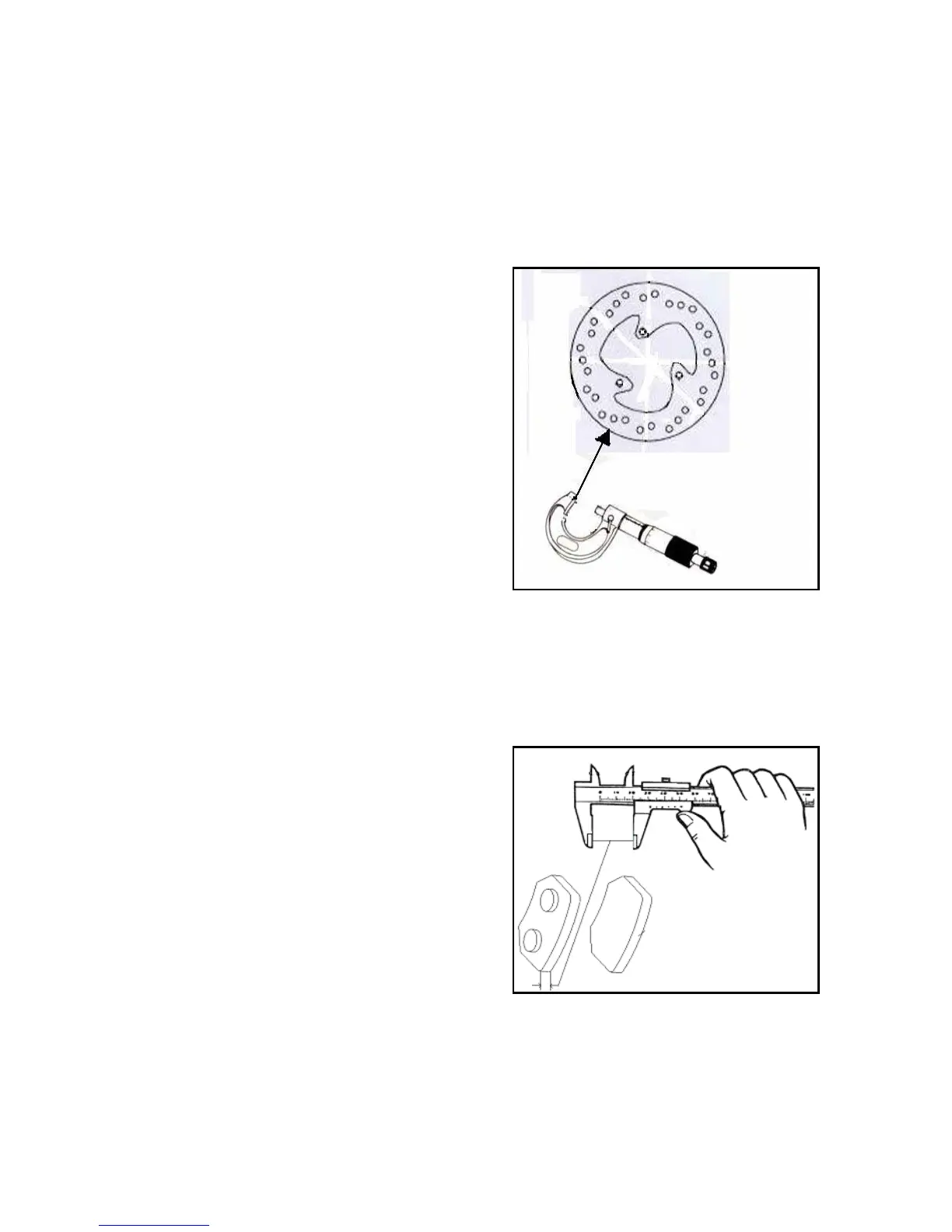

Measure the brake pad and brake disc and put down the
maximal value.
Specification
RACE 50 diameter of front hydraulic brake φ190mm
diameter of front hydraulic brake 4.0mm
*Attention
•It must be measured with microcaliper.
Measure the thickness of brake pad.
If thicknesses of brake disc and friction lining module are
less than the service values or they are contaminated by
grease, replace.
Allowable limit: brake pad 5.0mm
brake disc 3.0mm
Note:
the brake clutch should be replaced in pairs.
5.3.3 Installation
Install the brake disk and front wheel.
