The triangle belt is worn out The triangle belt is worn out The friction-plate spring of clutch is broken out.
The driven wheel is worn out The clutch spring is deformed
The clutch friction plate is damaged or worn out. The ball bearing is worn out
The clutch spring is broke The surface of the driving pulley is stained.

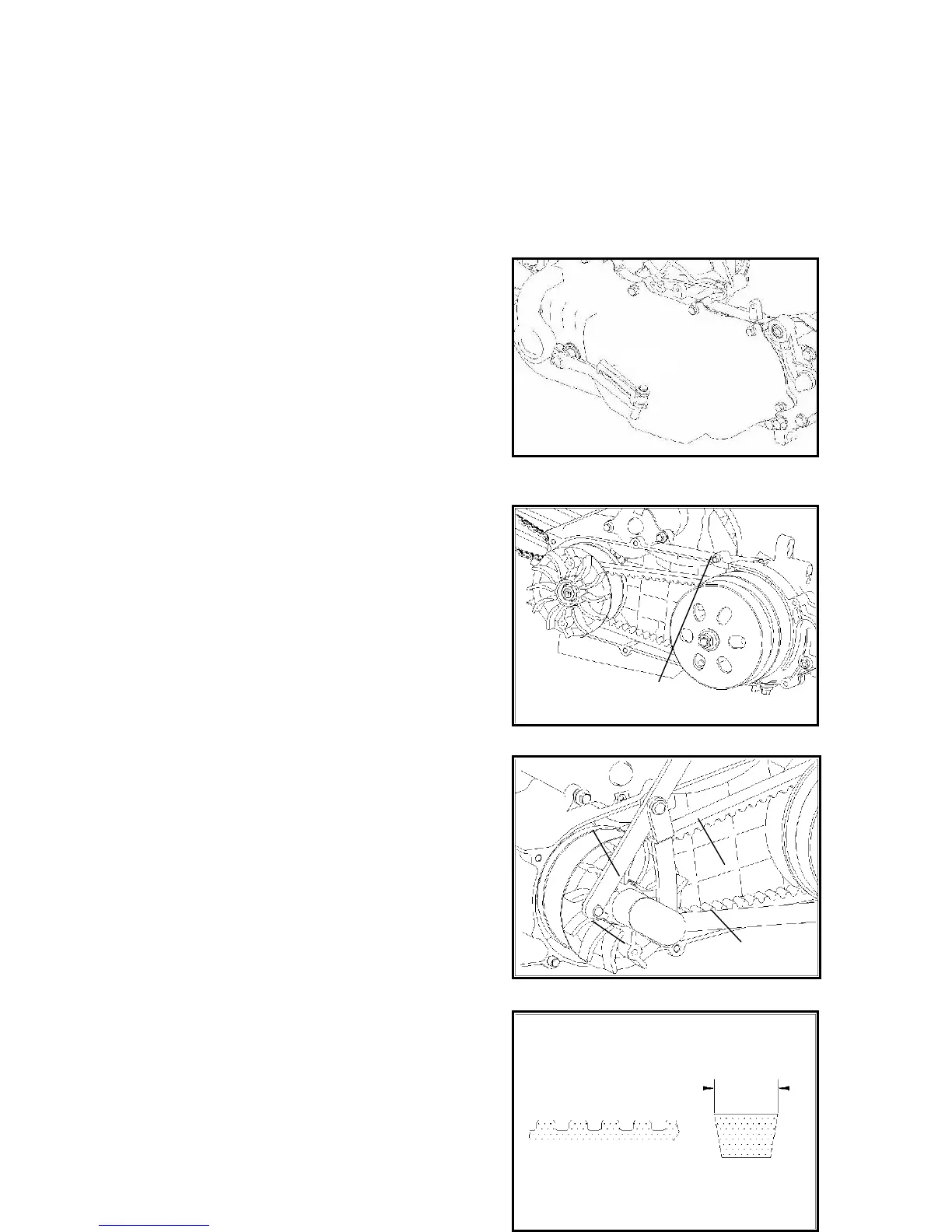

14.3 Left crankcase cover
Disassembly
Dismantle the fixing bolt of the case cover and take down the
gasket and the guide pin.
*Attention:
When dismantling the fixing bolt, loosen and dismantle it in
cross way.
Take down the gasket and the guide pin.
14.4 Drive disk
Left cover
Fixing bolt
Guide pin
Fixer
Texrope
The left half of the drive disk
Wrench
Width
To Next Page
