Take down the gasket and the guide pin.
Take off the clutch main shaft, output shaft gear.
Take off the middle shaft, middle shaft gear.
15.3.2 Output gearbox cover inspection
Clutch main shaft, gear, bearing wear, damage inspection.
Gearbox cover bearings exchange.
The clutch main shaft must be pressed during the clutch main
shaft bearings exchange.
Take off from the gearbox cover.
*Attention:
The bearing which is pushed out can not be used and should be replaced.
The disassembly of bearings and oil seal should use special tools.
Dismantle the oil seal on the gear case and push out the bearing.
*Attention:
The bearing which is pushed out can not be used and should be replaced.
The disassembly of bearings and oil seal should use special tools.
15.4 Installation
The order of assembly is opposite to that of disassembly.

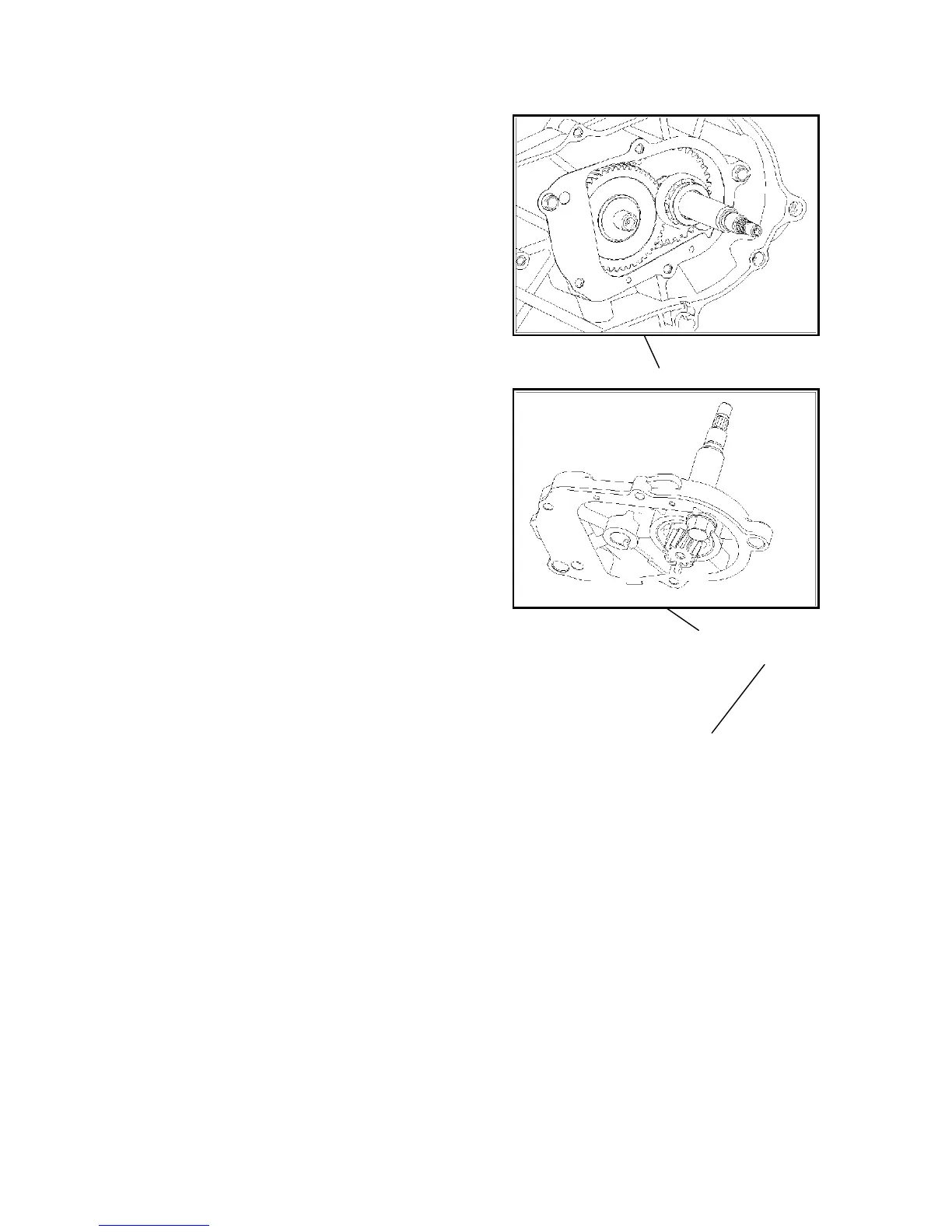

Middle shaft gear
Clutch
main shaft
Clutch main shaft
