Measure the right-half internal diameter of the driven wheel.
Allowable limit ：26.06mm.
Measure the external diameter of the sliding sleeve.
Allowable limit ：25.94mm.
14.5 Clutch/driven wheel
14.5.1 Disassembly

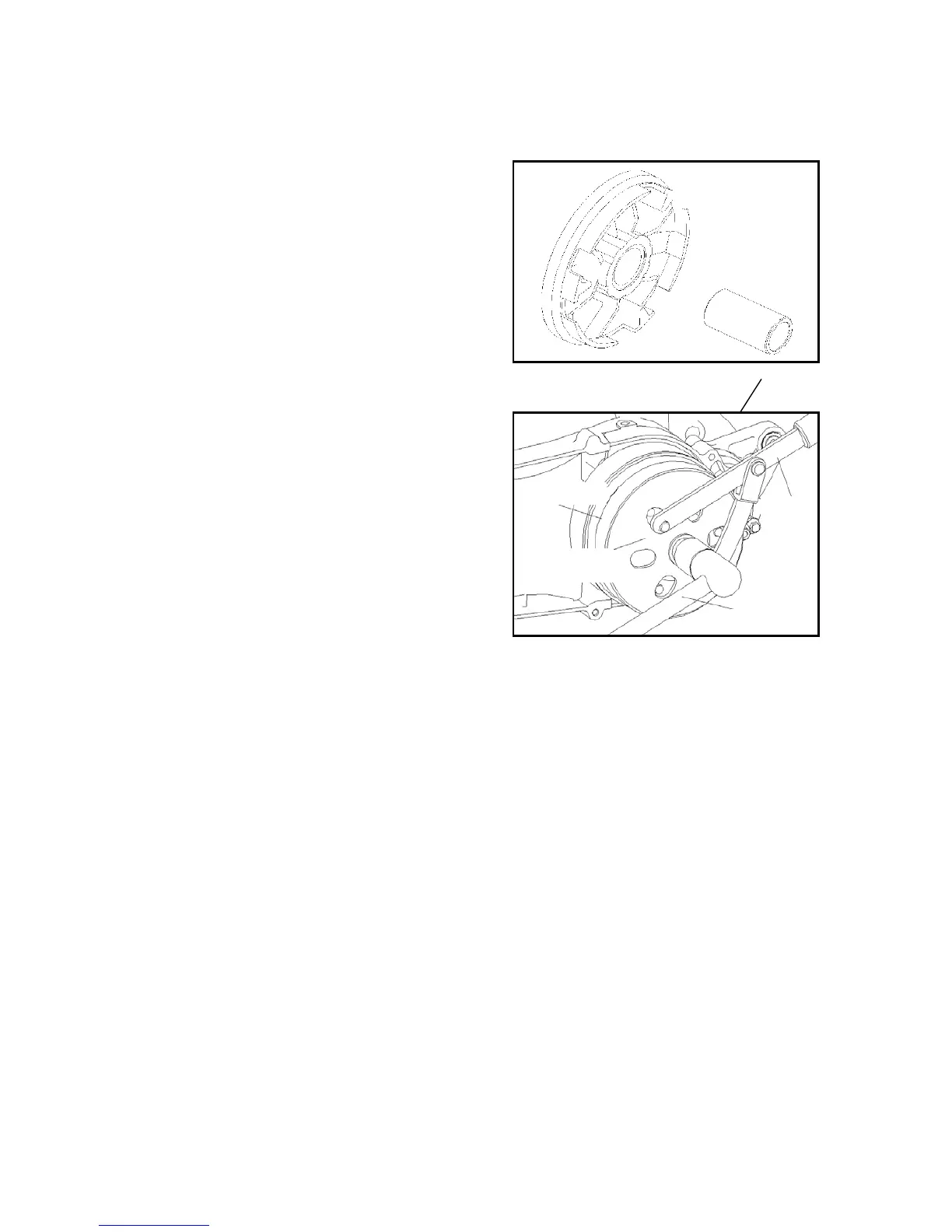

Fix the outer part of clutch with the fixing tool and dismantle the fixing nut.
Take down the outer part of clutch, clutch/driven wheel.
14.5.2 Decomposing the clutch
Dismantle the check ring and decompose the clutch.
*Attention:
When decomposing, there should be no grease adhesive to the friction plate of clutch.
Right-half components
of the drive wheel
Sliding sleeve
Driven wheel
Fixer
Clutch coating
Box wrench
