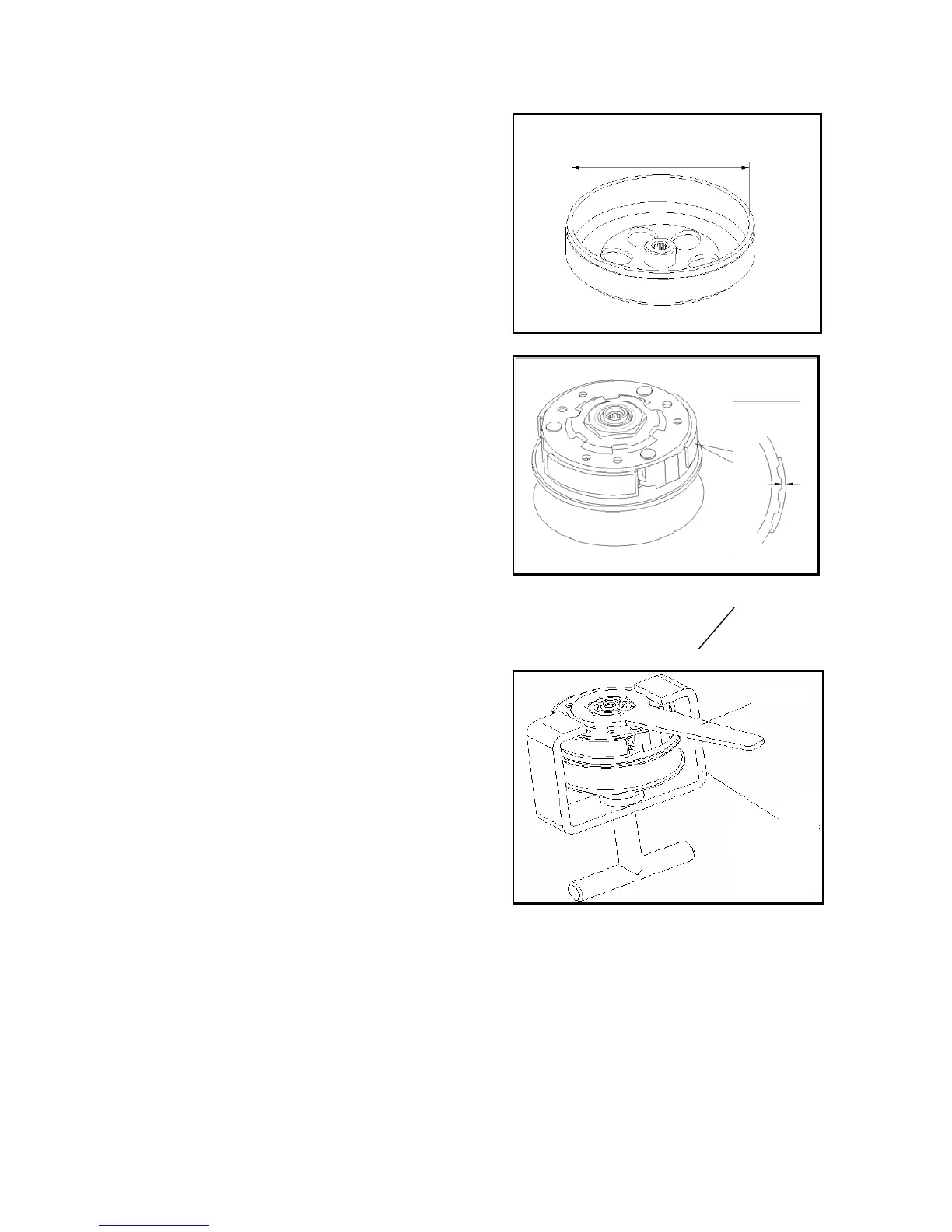

Check the abrasion of the outer part of clutch.
Measure the internal diameter of the outer part of clutch.
Allowable limit ：118.5mm.
Check the abrasion of the friction plate of clutch.
Measure the thickness of the friction plate.
Allowable limit ：1.5mm.
14.6 Disassemble the clutch and the driven wheel
When dismantling the clutch-pressing spring, use the clutch spring compressor in the operation.
*Attention:
The spring compressor must be used in dismantling to prevent damaging the spring.
Fix the spring compressor and dismantle the fixing nut of clutch.
Friction plate
Clutch spring
compressor
Wrench
