14.4.1 Disassembly
Dismantle the fixing nut of the drive disk and take down the left half of the drive disk.
Take down the triangle belt from the drive disk.
Check whether the triangle belt is chapped and whether the rubber and cotton yarn fall off or are abnormally worn
out.
Measure the width of the triangle belt.
Allowable limit ：16mm.
*Attention:
When replacing, select the original parts.
Dismantle the right-half components of the drive wheel.

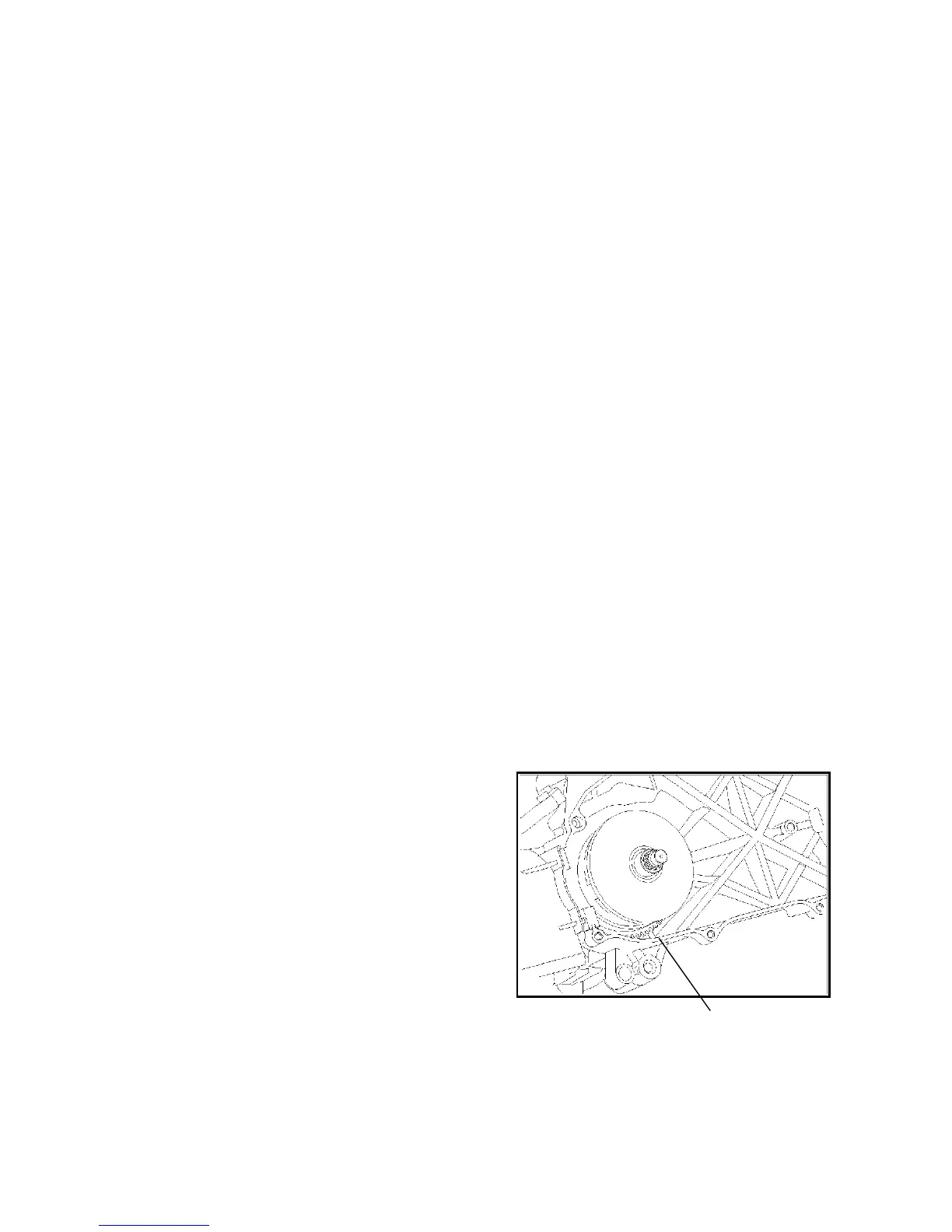

Right-half components
of the drive wheel
