14.6.2 Combination of clutch and driven
wheel

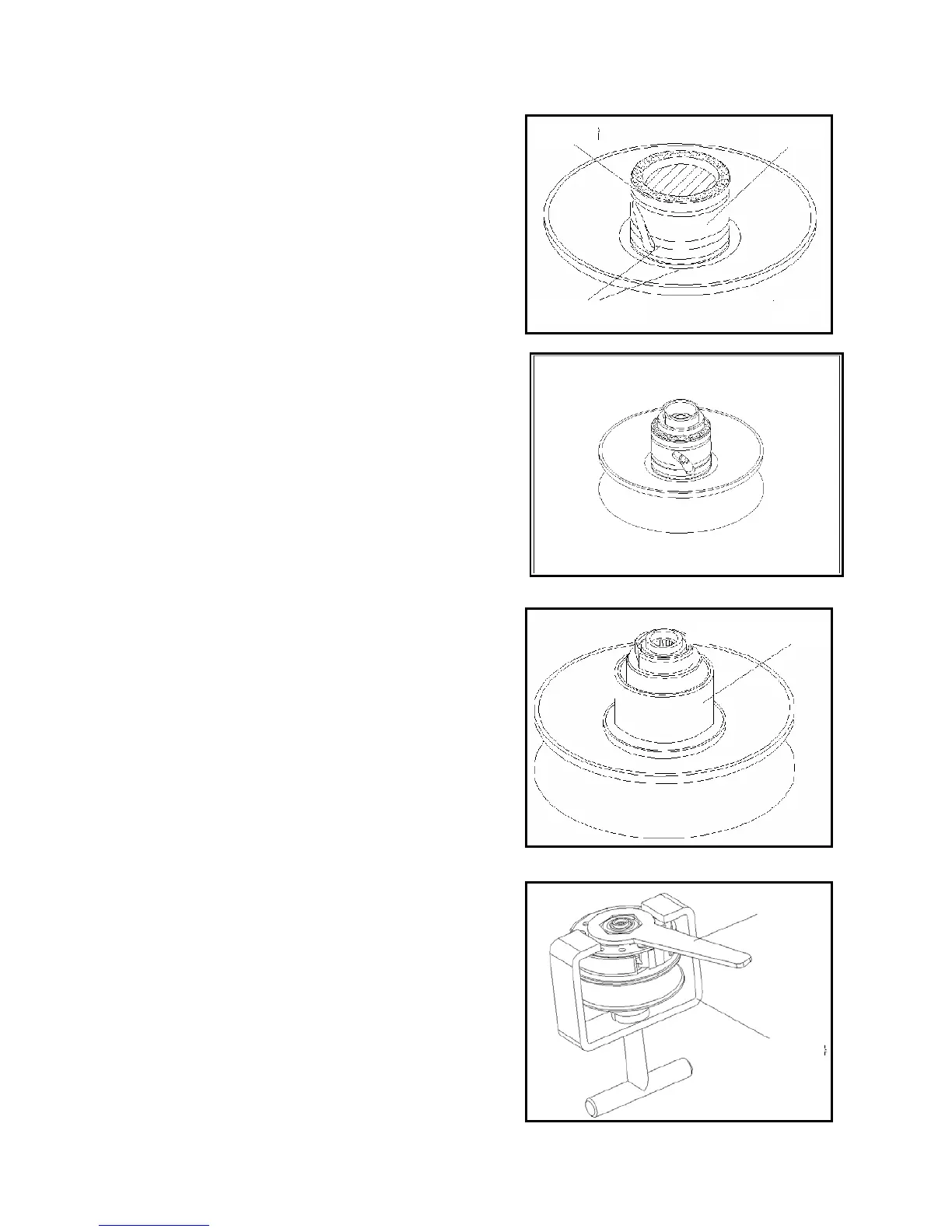

Clean the grease on the driven wheel surface.
Install the oil seal in the left-half sliding sleeve of the driven
wheel.
Paint grease on the O-typed ring and install it on the left-half
sliding sleeve of the driven wheel.
Combine the left-half and right-half parts of the drive wheel.
Paint grease on the guide pin install in the guide slot.
Install the protective jacket of the spring.
Wipe and clean the leakage grease.
Grease
Oil seal
O-typed ring
Guide pin
Guide slot
Protective jacket of the spring
Wrench (lock nut)
Clutch spring compressor
