9.3 Fuel tank/seat mat
9.3.1 Disassembly
Open seat mat.
Remove the screw bolts of seat mat（4 pcs）.
Remove oil pot shielding lid.
Remove oil pot.
Remove seat mat (7）and helmet bucket.
Remove rear luggage rack（8）.
Remove left/right shielding plate.
Remove components of rear handrail and helmet bucket
mounting seat.
Turn the fuel switch to “OFF” position.
disconnect：fuel tube.
Remove the fuel tank from vehicle frame.
Note：

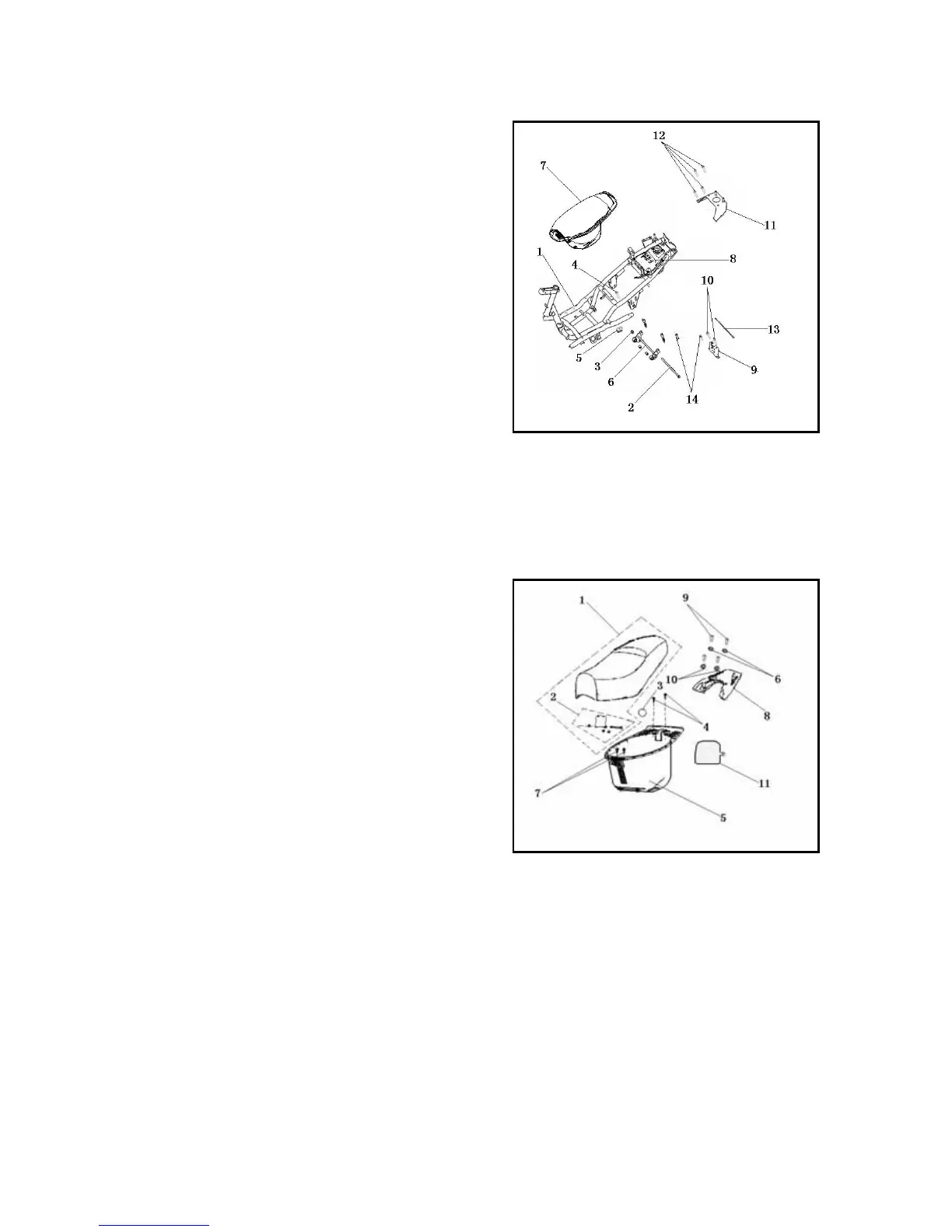

see P100、101、102 for detailed figure of dismantling and mounting.
