Generic Race 50 - XI. Carburetor

148

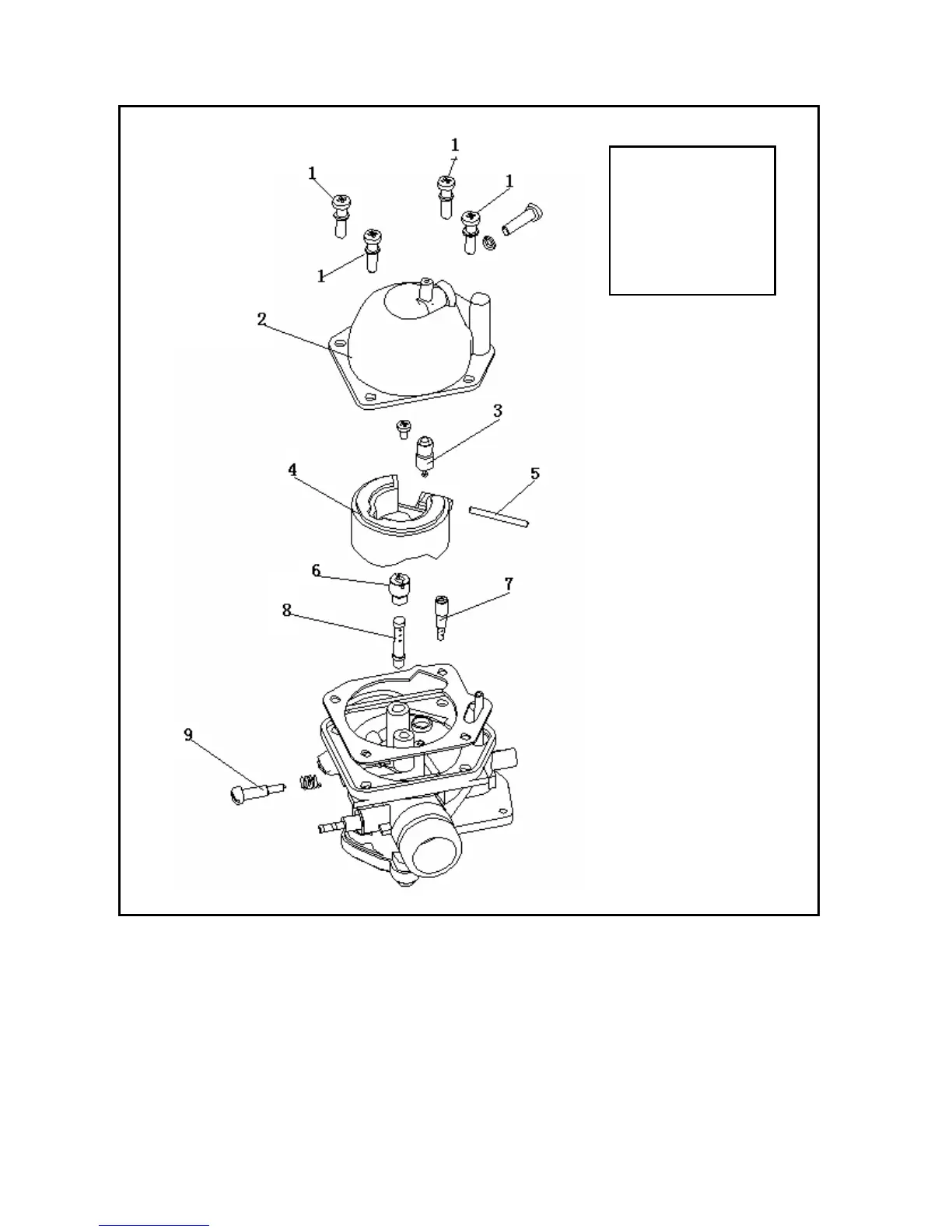

1. Screw. 2. Float chamber 3. Needle-valve component. 4. Floater. 5. Floater pin 6. Main jet.
7. Idle speed injection nozzle. 8. Main foam pipe. 9. Idle speed adjusting screw.
Note: Gasoline is very
dangerous, no smoke at
work place.
Use cloth to block the
intake manifold after
dismounting carburetor to
avoid other article entry.
