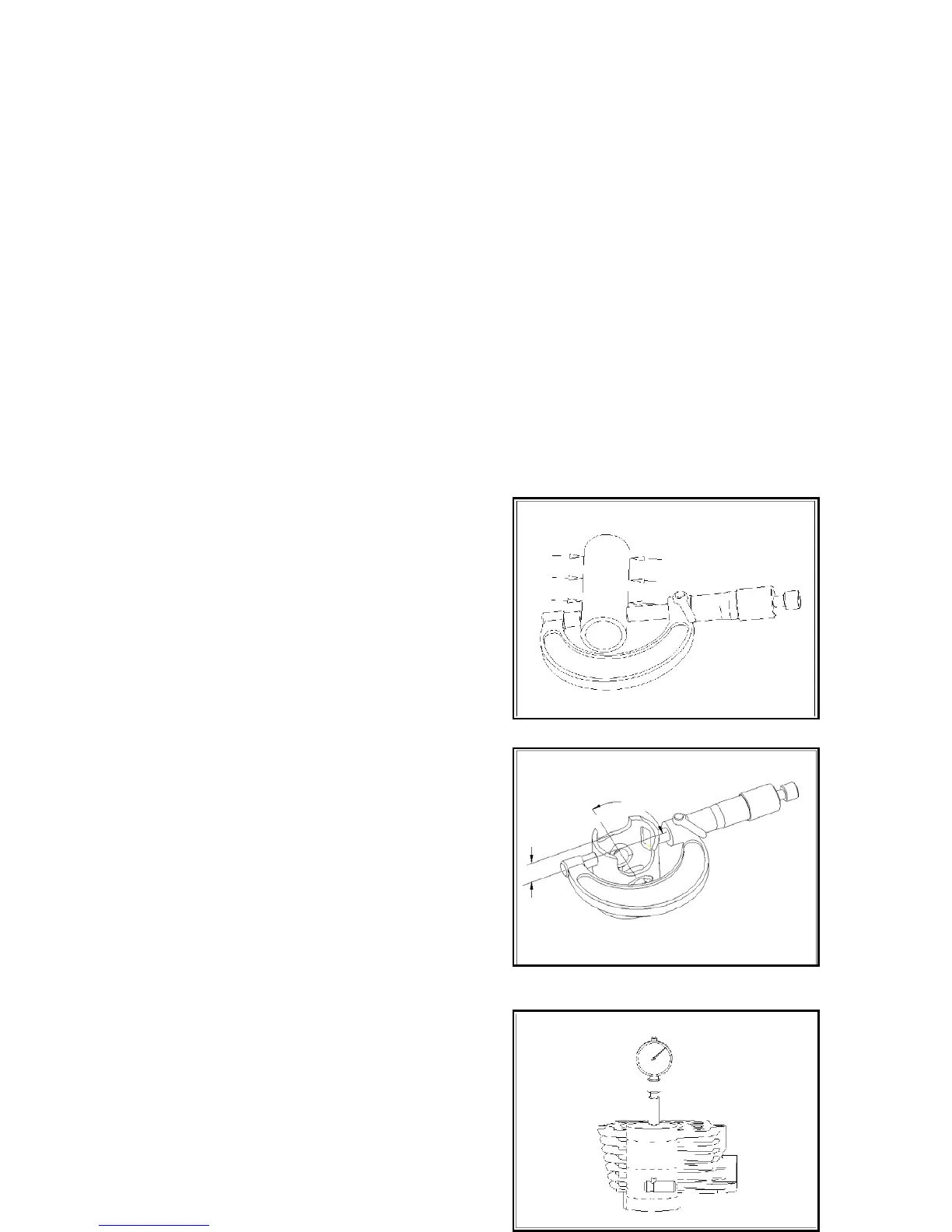

Measure the interface clearance of the piston ring.
Allowable limit：0.5mm.
Measure the bore diameter of the piston pin hole.
Allowable limit：12.04mm.
Measure the outer diameter of the piston pin.
Allowable limit：11.96mm.
Clearance of piston pin hole and piston pin.
Allowable limit：0.02mm.
测试规
1
2
3
11 5m
Testing gauge
