16.2 Fault diagnosis
Strange noises in crankcase
Parts shattered or broken in crankcase The crankshaft bearings are loosened.
The bearings of crankshaft pin are loosened. Clutch depressed
16.3 Crankcase

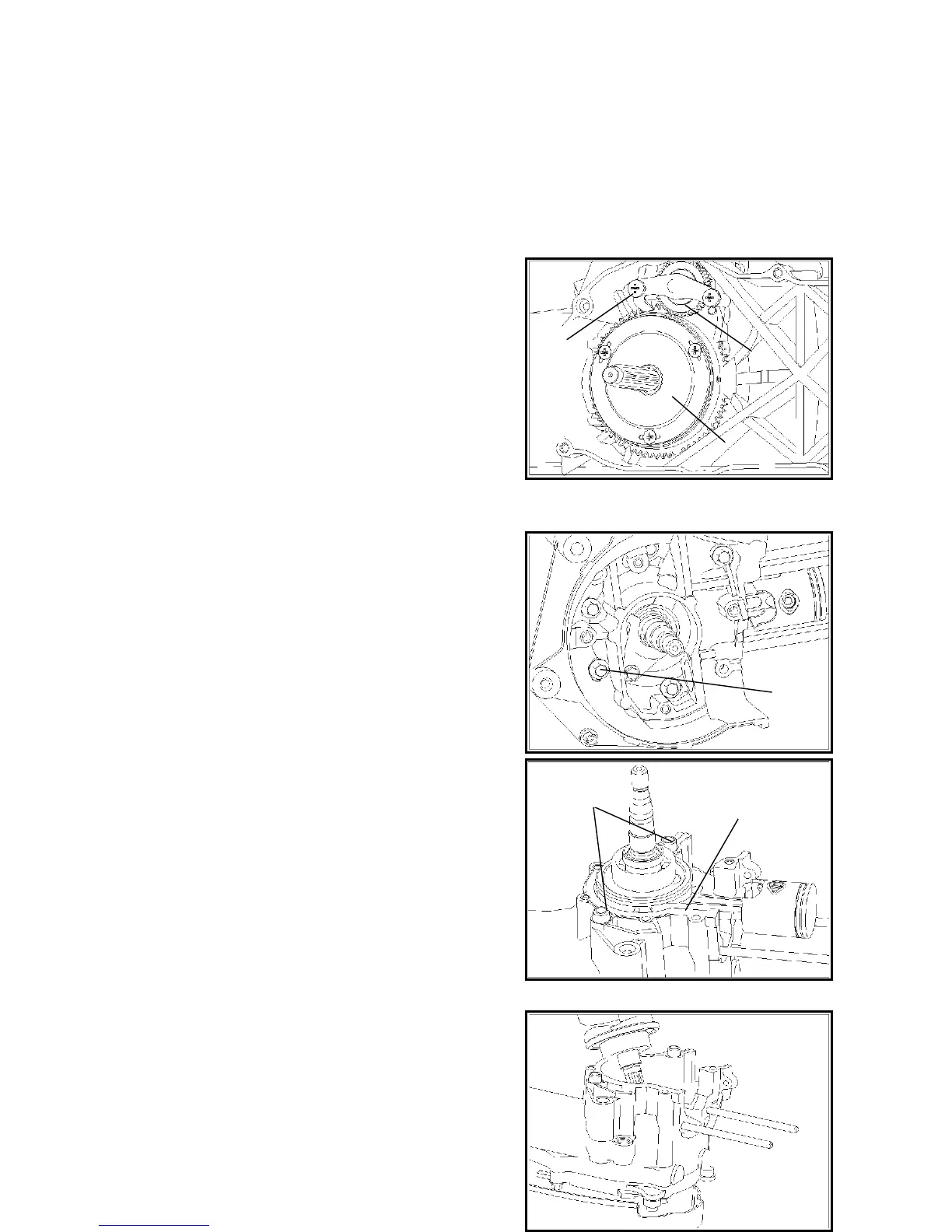

16.3.1 Disassembly of crankcase
Loosen bolt, take off the start drive gear.
Take off the gear on the satellite wheel seat.
Dismount crankcase fixing bolts.
Dismount left, right crankcase.
*Attention:
Don’t damage the gasket.
Crank
Gear on the satellite wheel seat
Bolt
Starting indolent gears
Bolt
Positioning pin
Gasket
