extremely dangerous.
The installtion is in the reverse order of dismantling.
Warning!
In order to prevent short circuit, please connect positive pole prior to the negative one.
Please do not disconnect battery when you perform overall lineup; otherwise, internal damage of complete vehicle
components may result.
Inspection of charging state (CCU)
Open the battery-cell lid.
Dismantle the clamping bar components of battery cell.
Remove the negative pole wire first, and then the positive
pole wire.
Take out battery.

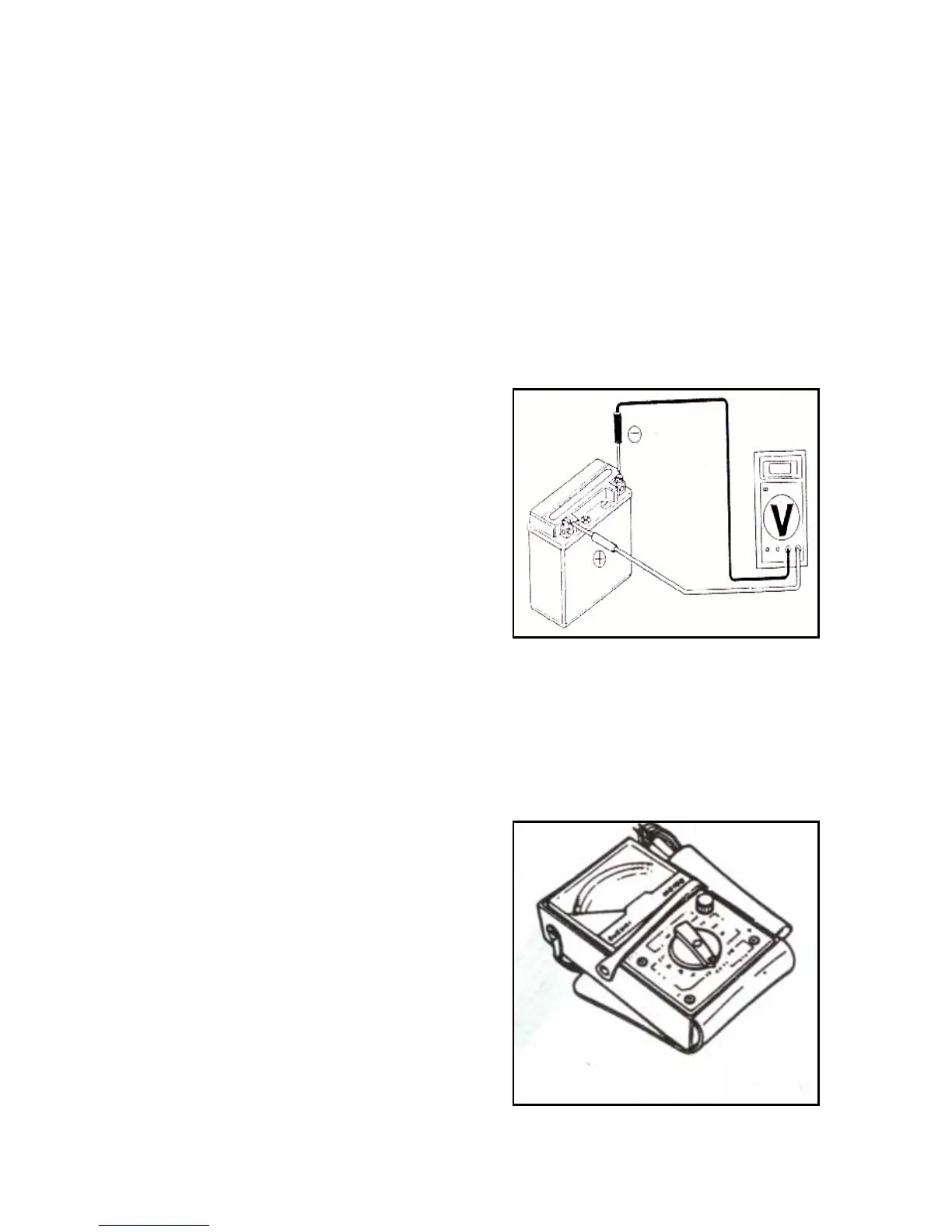

Measure the voltage between the battery terminals.
Fully charged: 13.1V
Undercharge：12.3V
*Attention
The inspection of charging state should be made by voltage meter.
Charging
Connecting method:
Connect the positive pole of charger to that of battery.
The negative pole of charge connects to that of battery.
Warning!
•Fire should be strictly prohibited around battery.
•As starting to charge or upon the completion of charge, the
switch of charger should be turned off first in order to
prevent the sparkle of connecting position from explosion
hazard.
•The current time specified on the battery should be the
reference for charging.
Voltmeter
