8: Connectivities
84
Geodesic Sensor Net Technical Manual S-MAN-200-GSNR-001 • January 31, 2007
Components Using the Hypertronics Connector
The system connections that use the Hypertronics connector are shown in Figure 1-6
on page 26. The GSN and amplifiers connect to the Geodesic EEG System through the
Hypertronics multipin receptacle and the Hypertronics multipin plug, respectively.
All Nets use the Hypertronics connector.

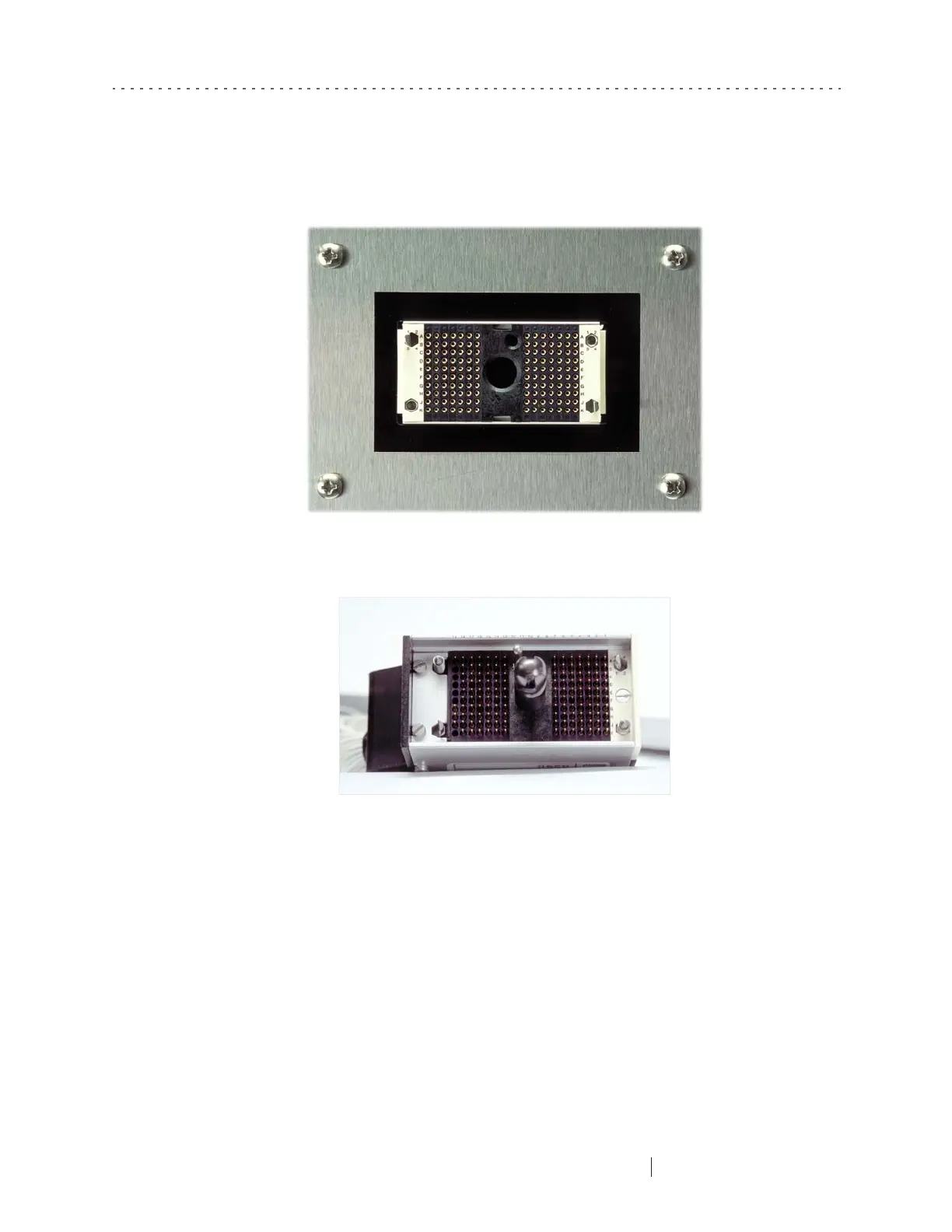

Figure 8-1. Multicontact Hypertronics receptacle (128-channel Net Amps 200 amplifier)
Figure 8-2. Hypertronics plug of 128-channel GSN
