Geodesic Sensor Net - Sensor to 256-Pin Plug

C: GSN Pinouts
135
Geodesic Sensor Net Technical Manual S-MAN-200-GSNR-001 • January 31, 2007

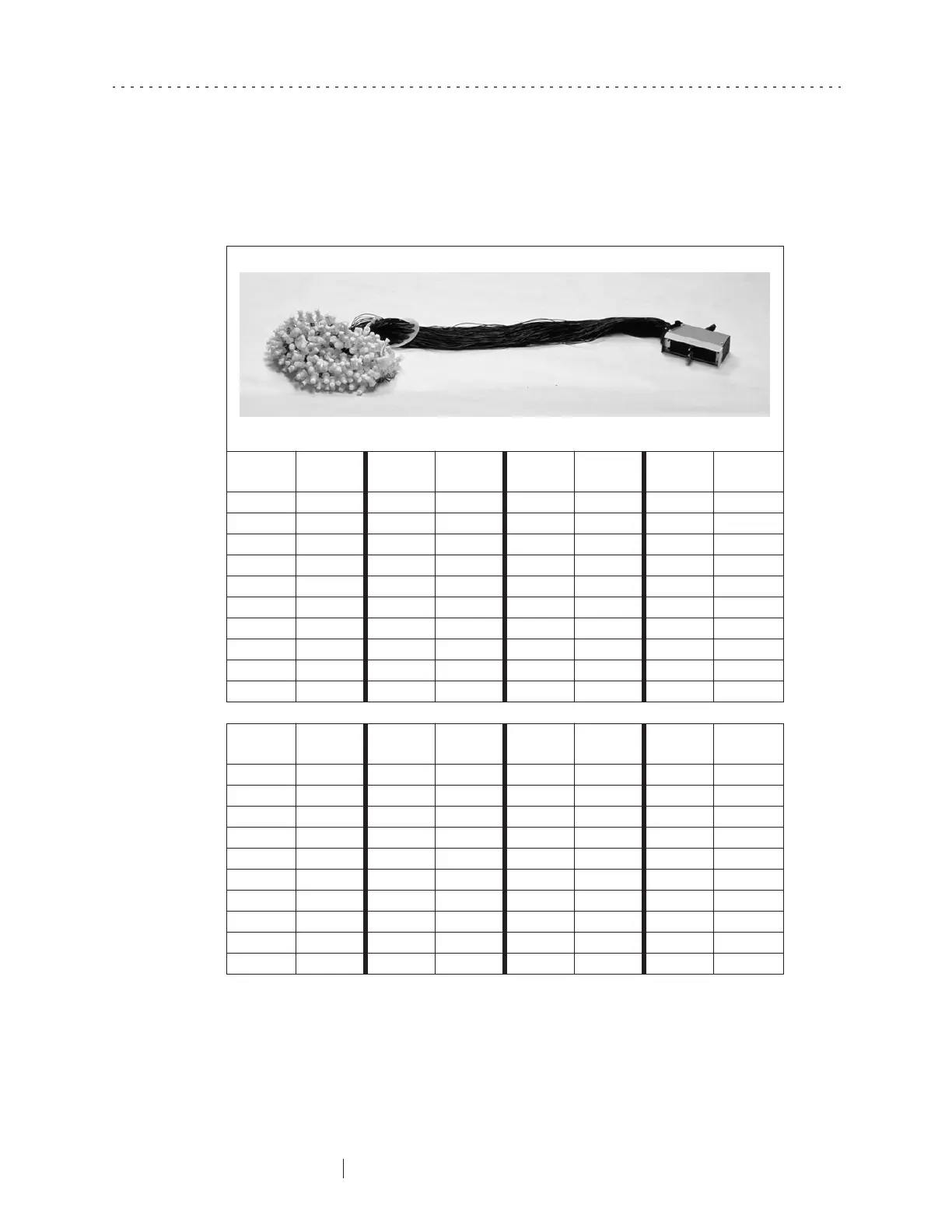

Table C-3. Sensor to 256-pin plug
Sensors
1–10 Pin
Sensors
11–20 Pin
Sensors
21–30 Pin
Sensors
31–40 Pin
1 1A112A213A314A
2 1B122B223B324B
3 1C132C233C334C
4 1D142D243D344D
5 1E152E253E354E
6 1F162F263F364F
7 1G172G273G374G
8 1H182H283H384H
9 1J192J293J394J
10 1K 20 2K 30 3K 40 4K
Sensors
41–50 Pin
Sensors
51–60 Pin
Sensors
61–70 Pin
Sensors
71–80 Pin
41 5A 51 6A 61 7A 71 8A
42 5B 52 6B 62 7B 72 8B
43 5C 53 6C 63 7C 73 8C
44 5D 54 6D 64 7D 74 8D
45 5E 55 6E 65 7E 75 8E
46 5F 56 6F 66 7F 76 8F
47 5G 57 6G 67 7G 77 8G
48 5H 58 6H 68 7H 78 8H
49 5J 59 6J 69 7J 79 8J
50 5K 60 6K 70 7K 80 8K
256-channel GSN
