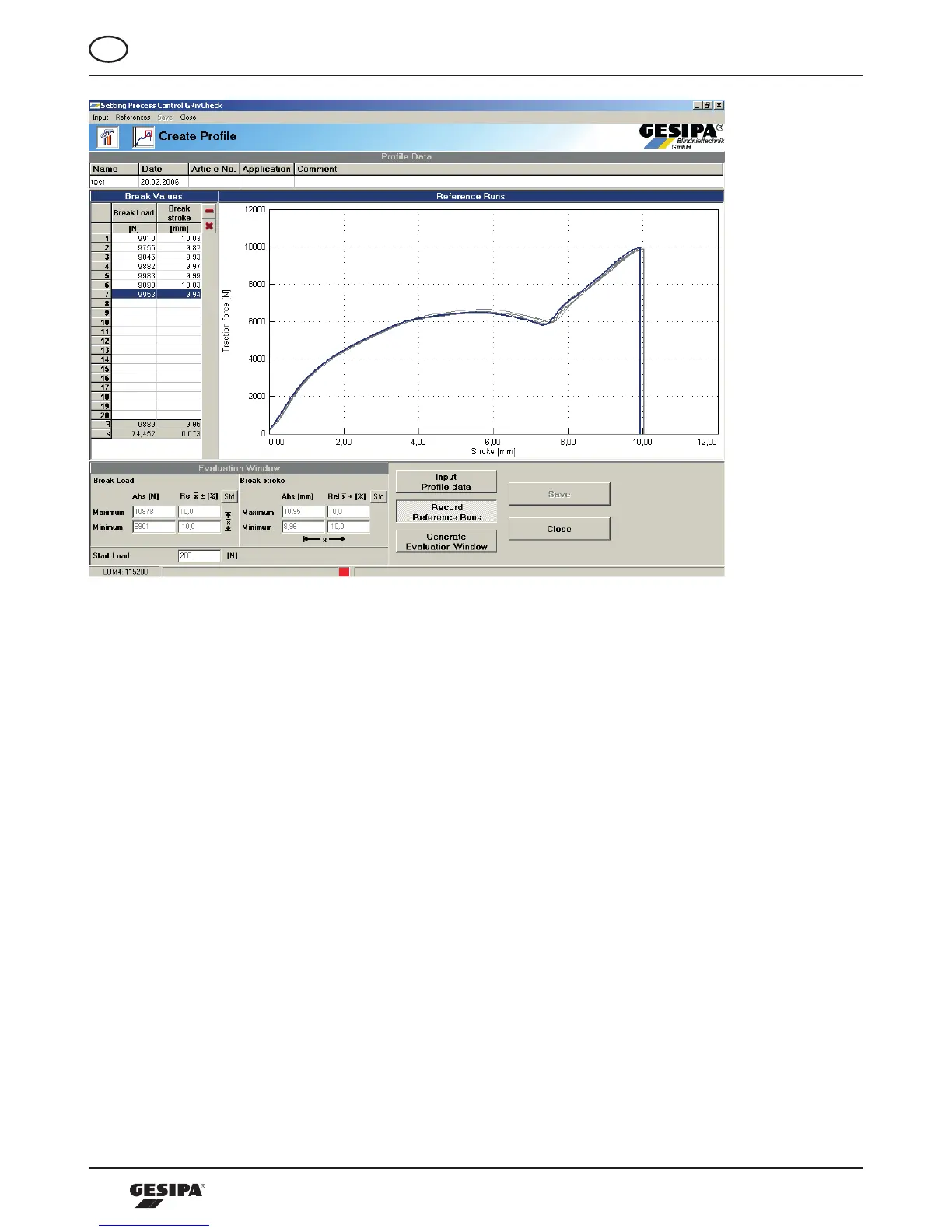

Illustration 8: Representation of sample rivetings
Onceanapplication-specificnumberofamaximumof25samplerivetingshasbeenrecorded
a start force is defined. This is carried out by manually entering an absolute value of the start
force into the respective window and confirmed by pressing Enter. The start force defines the
beginning of a course measurement and that way allows setting a trigger for constant limiting
conditions for analyzing the measurement values.
The start force must be set with a minimum value of 200N and depends of the applica-
tion.
