Repair and adjustment
9
Service instructions
5015108-00
Edition 0403
6
.

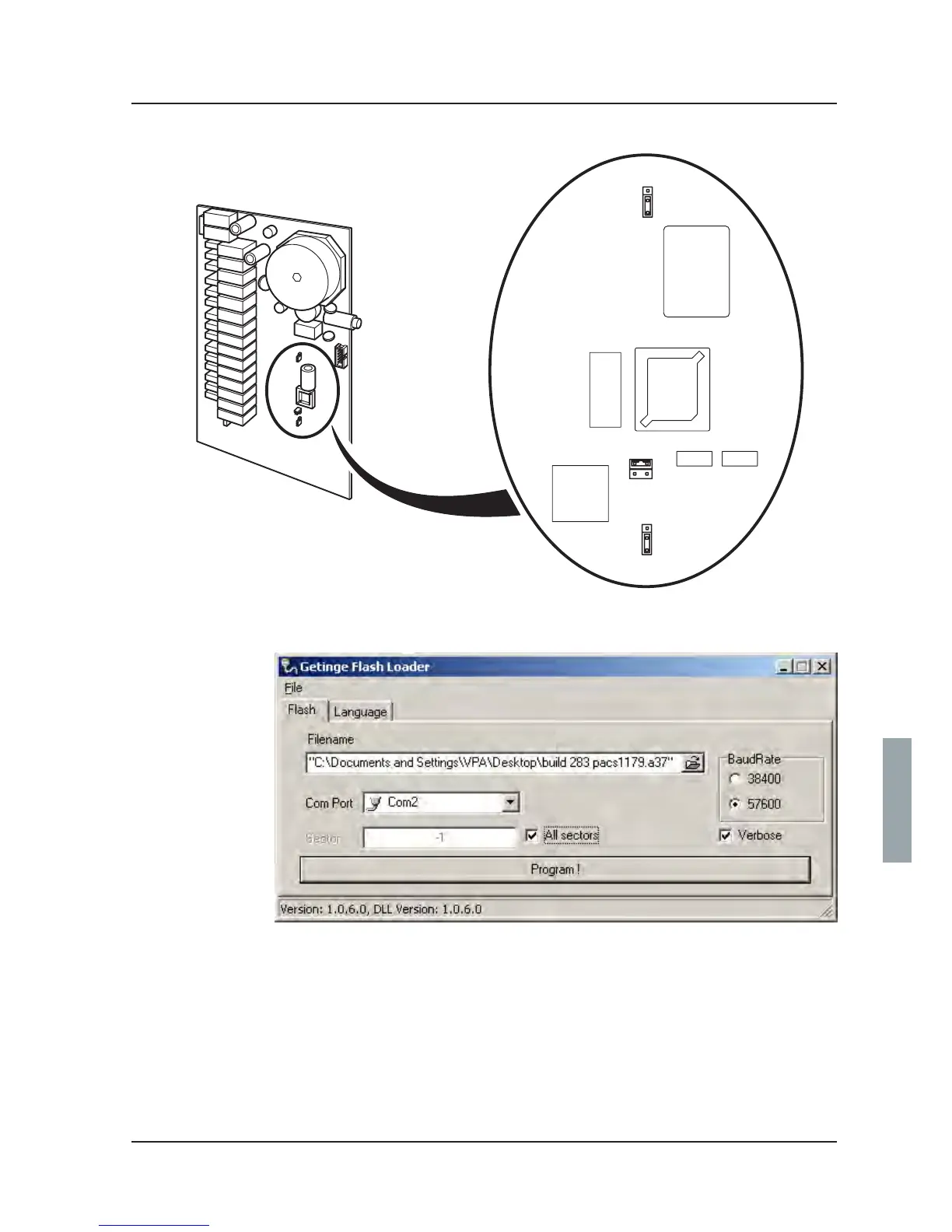

Change the jumper (X29) on the board for the PACS 300 control system from Normal to Test.
Flash
Prom
X28
X29
TEST
Norma
X30
ON OFF
V1544
7
.
Set up as shown.
File name
Choose the right program file (*.a37).
Com
Port
The port to which you connected the data cable to your PC.
Baudrate
Choose 57600
All Sectors and Verbose must be checked (=selected).
V1578
55
57
Table of Contents
Description
13
Safety Regulations
3
Table of Contents
13
General
15
Schematic Diagram
16
Electric Heating
16
Steam Heating
16
Steam and Electric Heating
17
Explanation of Symbols
17
Safe and Simple
18
Simple Service and Installation
18
Manually-Operated Door
18
Automatically-Operated Door
19
Dosing System
19
Drying
20
Programs
21
Abort at Start of Process
22
Aborting an Ongoing Process
22
Fast-Stepping a Program
23
Software Description and Settings
25
Description
27
Control Panel
28
Display
28
Program Selection Buttons
28
Field Editing
29
Scroll in Menus and Lists
29
Password
30
Operator
30
Parameter
30
Supervisor
30
Service
31
Programming
31
Menu Tree
31
Preventive Maintenance
32
General
34
Periodic Maintenance
34
Function Check
35
Instructions, Cable, Switch
35
Filter and Valves
35
Controls
35
Insert for Goods
35
Isolator Switch
35
Door
36
Detergent Dosing
36
Washing System
36
Dryer
36
Fault Indications and Troubleshooting
38
Fault Indications
40
A Red Lamp Lights up
40
Messages
40
Fault Codes
41
Acknowledging a Fault Code
41
Troubleshooting
42
Repair and Adjustment
48
Connecting a PC
50
Connecting a Barcode Scanner
51
Handscanner
51
Barcode Scanner
52
Loading a Program to Flash Memory
53
Loading System Programs
53
Load Language Files
55
Cold Start
58
Calibration
59
Conductivity Meter
59
Check the Output Signal from Conductivity Meter
59
Set the Cell Constant
59
Calibration
60
Pressure Sensor for Circulation Pump
63
Temperature Sensor - with Resistor
65
Temperature Sensors - with Ice Bath and Oil Bath
67
Differential Pressure Gauge for Dryer
69
Replacing a Temperature Sensor
72
In Wash Chamber and Dryer
72
In Booster Tank
72
Door
73
Position and Operation, Door Switches
73
Adjusting Door Switches
75
Adjusting DOOR up Safety Switch
76
Replacing the Door Seal
77
Removing the Door
78
Adjusting the Door Closing Force
79
Adjusting Manual Door
80
Overheat Protection
81
Cleaning the Filters in the Solenoid Valves
82
Dryer
83
Conductivity Measurement (Extra Equipment)
84
Function in Washing Process
84
Measuring Range
84
Calibration
84
Removing a Measuring Cell
84
Setting Detergent and Rinse-Aid Quantities
85
Printer (Extra Equipment)
86
Replacing the Paper Roll
86
Ribbon Cartridge Replacement
87
Jumpering an Expansion Card
87
Replacing a Hose to a Hose Pump
89
Booster Tank
90
Booster Tank with Drain Tap
90
List of Components
92
