Repair and adjustment
31
Service instructions
5015108-00Edition 0403

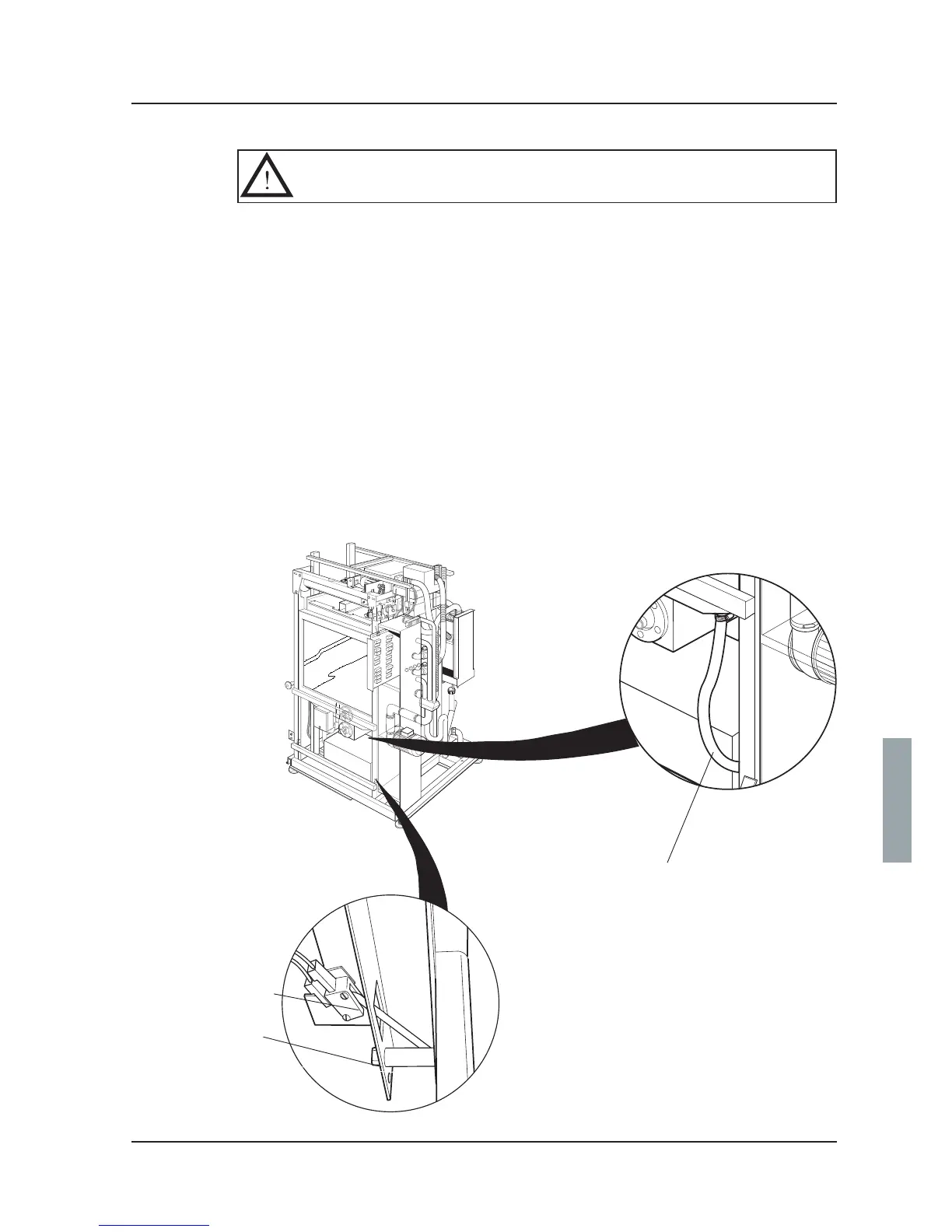

Removing the door
• Remove the front panels.
• Automatic door: Remove door switches and the door switches of the loader/unloader (if
there is one). Remove bolts.
• Remove leaf springs, bolts and spacers in the lower part of the frame.
• Remove the drain hose.
• Automatic door: Access the service program; Test the operation of the door.
• Move the door to the half-open position.
• Separate the door frame and the door closing mechanism.
• Free the door frame at the top edge. NOTE: Secure the frame so that it cannot fall forwards.
• Free the bottom edge of the door frame. NOTE: Secure the frame so that it cannot fall down
and suffer damage.
• The frame and door assembly can now be lifted out and placed on the floor or on a table.
• Release the wire from the door and hoist mechanism.
This must only be done by authorised personnel.
V679
V1297
Drain hose
Door switch
Bolt
Machine with
automatic door:
V1457
