Repair and adjustment
42
Service instructions
5015108-00
Edition 0403

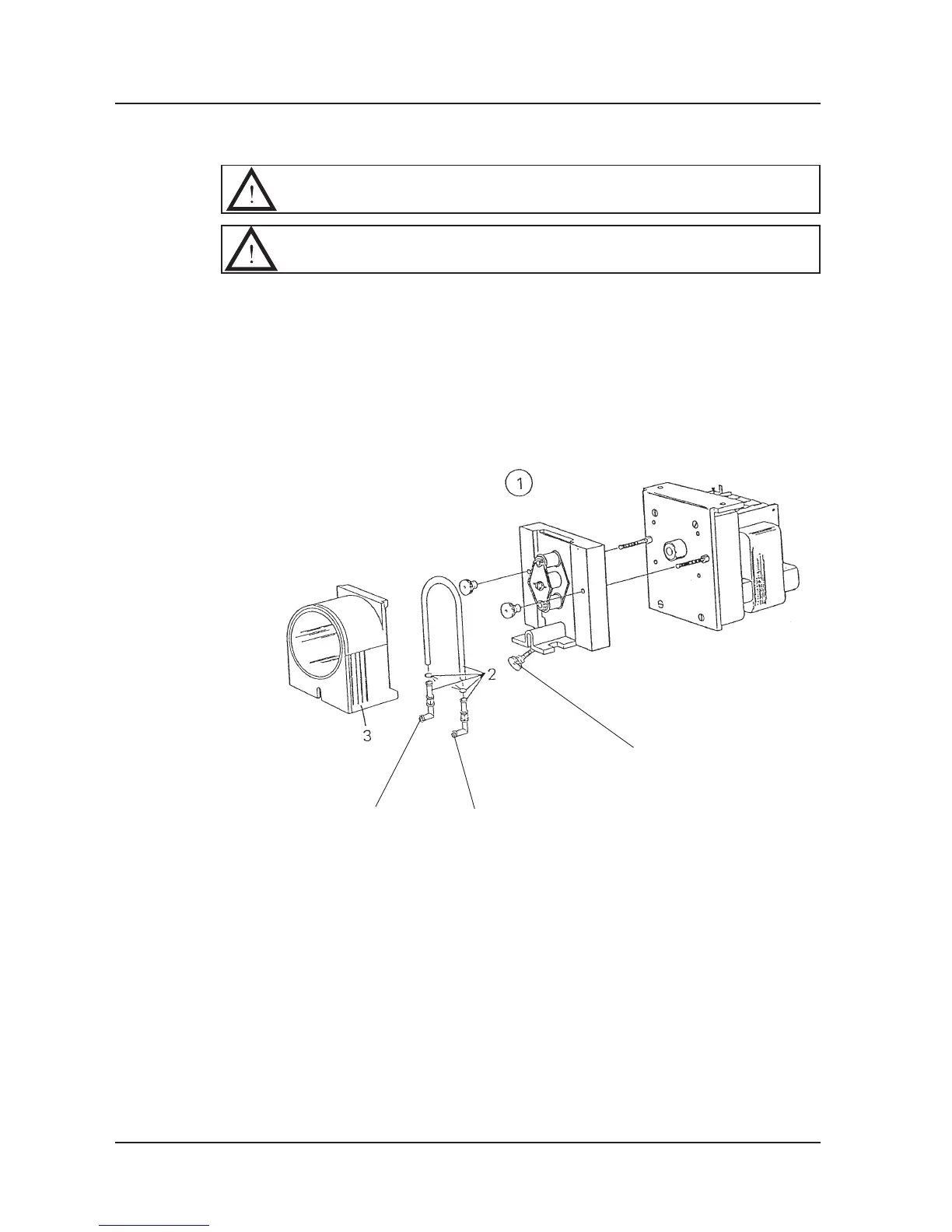

Replacing a hose to a hose pump
This may only be done by authorised personnel.
Before starting work, make sure that the machine is isolated from
the electric power supply.
•
Remove the cover (3) by unscrewing screw A.
•
Disconnect the hoses at connections B and C.
•
Take out the entire unit including hose (2) (a complete spare parts kit).
•
Install the new unit.
•
Refit the cover.
BC
A
V1043
