Repair and adjustment
22
Service instructions
5015108-00 Edition 0403
Differential pressure gauge for dryer
To calibrate the differential pressure gauge for the dryer, proceed as follows.
1. Connect a PC with the CS 1000 program installed to the disinfector.
2. Close the machine doors.
3. Connect an external differential pressure gauge in parallel with the existing gauge on the
machine. Zero the external differential pressure gauge.

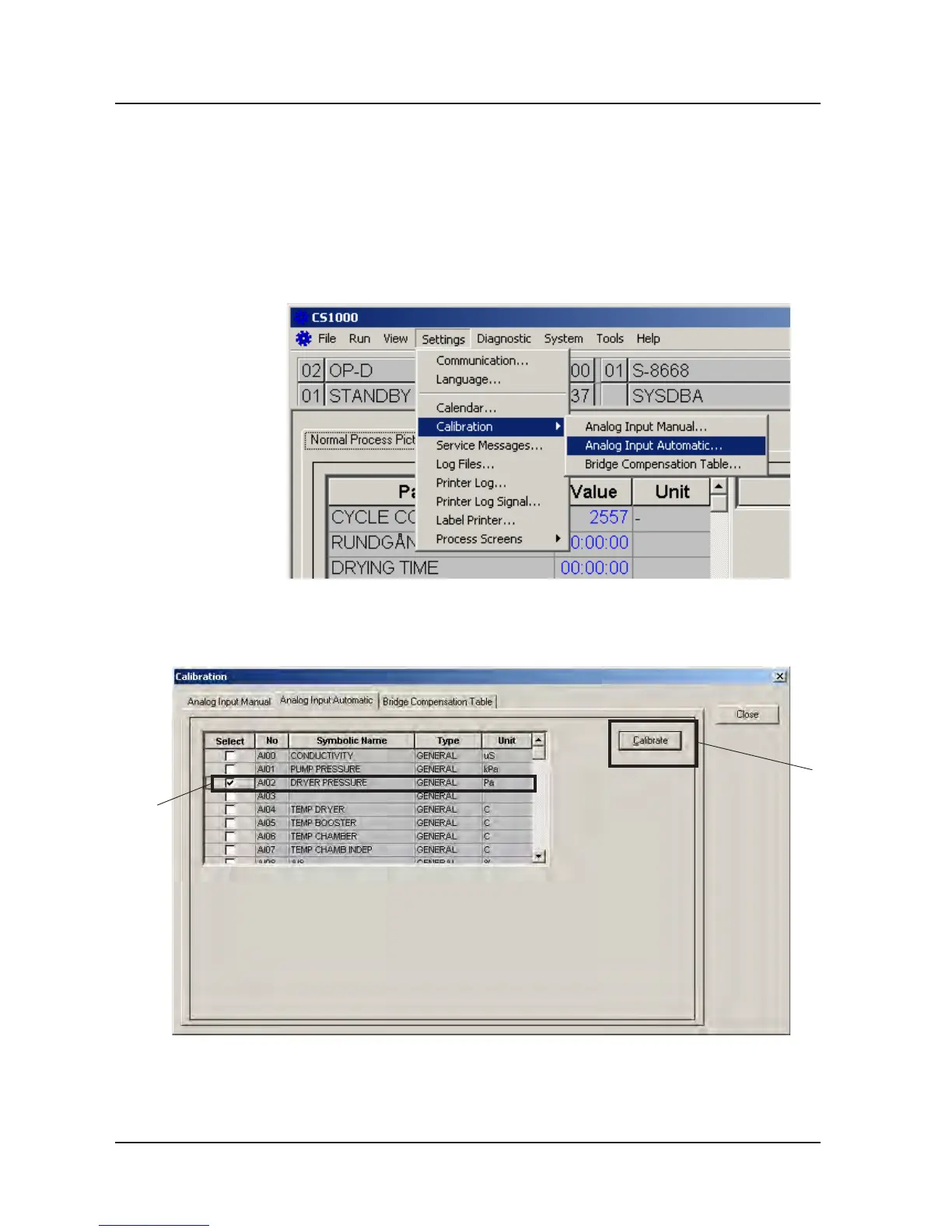

4. Start CS 1000 and choose Settings/Calibration/Analog Input Automatic...
5. Click Dryer pressure (A) and then Calibrate (B).
A
B
V1573
V1563
