Repair and adjustment
26
Service instructions
5015108-00 Edition 0403
V1452
Door switch
DOOR
UNLOCKED
Door switch
DOOR LOCKED
Door switch
DOOR
CLOSED
Door

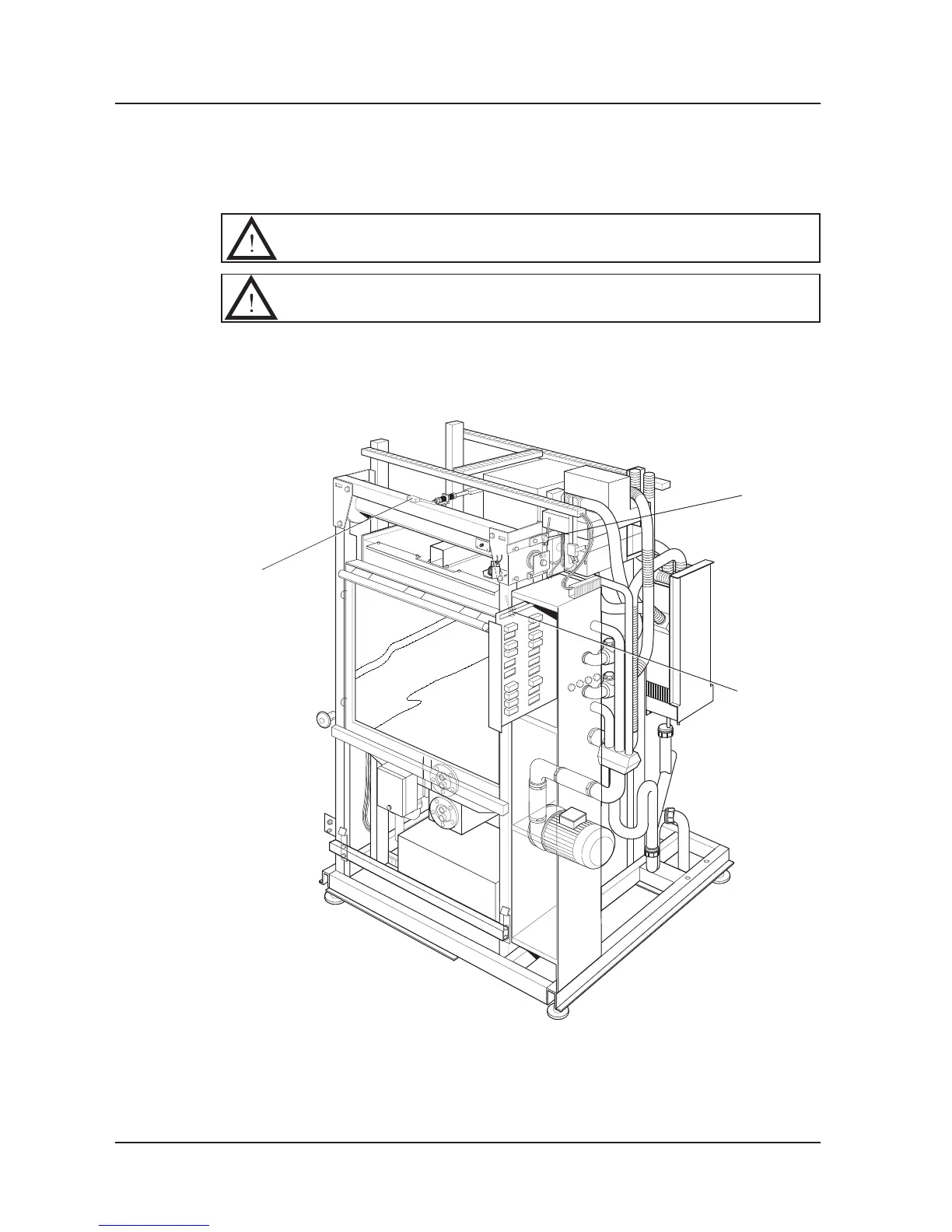

Position and operation, door switches
Manual door:
When the door is at its top position, the DOOR CLOSED and DOOR UNLOCKED switches are
activated. When the motor has pulled the door into its inner position, the DOOR LOCKED
switch is activated.
The illustration show which door switches are fitted to the machine with manual or automatic door.
Before starting work, make sure that the machine is isolated from the electric
power supply.
This must only be done by authorised personnel.
