Repair and adjustment
27
Service instructions
5015108-00Edition 0403
Door switch
DOOR OPEN
Door switch
DOOR UNLOCKED
Door switch
DOOR LOCKED
Safety switch
DOOR DOWN
Safety switch
DOOR UP
Door switch
DOOR CLOSED

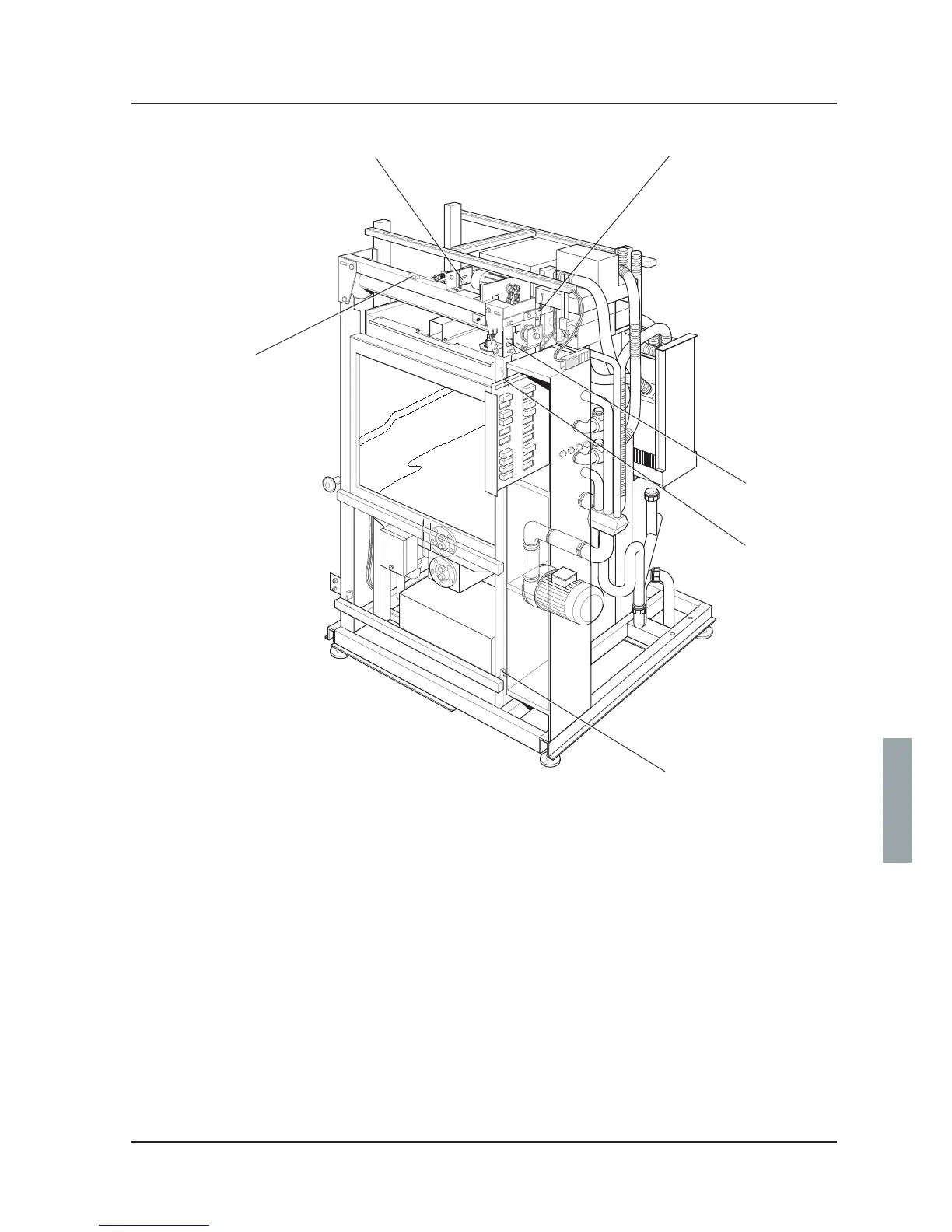

V1297
Automatic door:
When the door is at its bottom position, the DOOR OPEN switch is activated and when the door
is in the top position the DOOR CLOSED and DOOR UNLOCKED switches are activated. When
the motor has pulled the door into its inner position, the DOOR LOCKED switch is activated.
If the door is obstructed on its way up and the force on the door is greater than 150 N, the
DOOR UP safety switch stops the door. When the door is stopped, the motor drive unit turns
around its fixing point and activates the safety switch. For adjustment, see under “Adjusting
safety switches, DOOR UP”.
If the door is obstructed on its way down, the DOOR DOWN safety switch stops the door. The
door is suspended on two wires. If the door is obstructed, the wires continue to be paid out, and
a spring force activates the DOOR DOWN safety switch, stopping the door.
