Repair and adjustment
25
Service instructions
5015108-00Edition 0403
Replacing a temperature sensor
This must only be done by authorised personnel.
The machine is connected to the electricity supply and some components are live.
In wash chamber and dryer
• Remove the old temperature sensor by pulling it out of the seal.
• Push the new sensor in through the seal.
In booster tank
• Remove the old temperature sensor by unscrewing the gland pulling the sensor out.
• Push in the new sensor and tighten the gland.

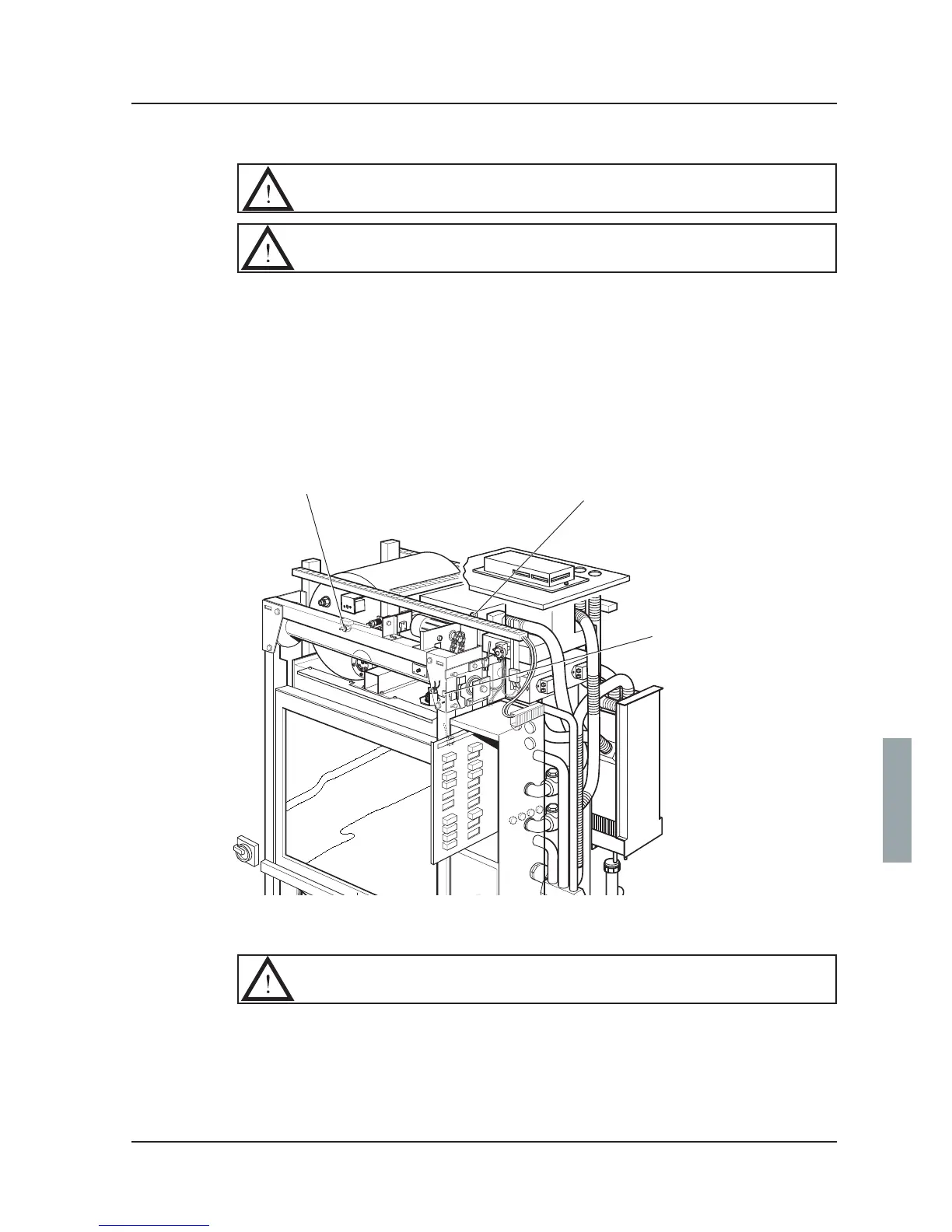

Temperature
sensors in dryer
Temperature sensors
in wash chamber
Temperature sensors
in booster tank
V1562
The booster tank contains hot water. This may cause scalding injuries if proper
procedures are not followed.
When servicing the booster tank and/or its associated components, there is a risk of contact
with hot water. The booster tank must therefore be drained before servicing.
To do this, clamp the hose above the solenoid valve. Disconnect the hose at the solenoid valve
and allow the hot water to run off into a drain.
