Instruction manual Design and function
45

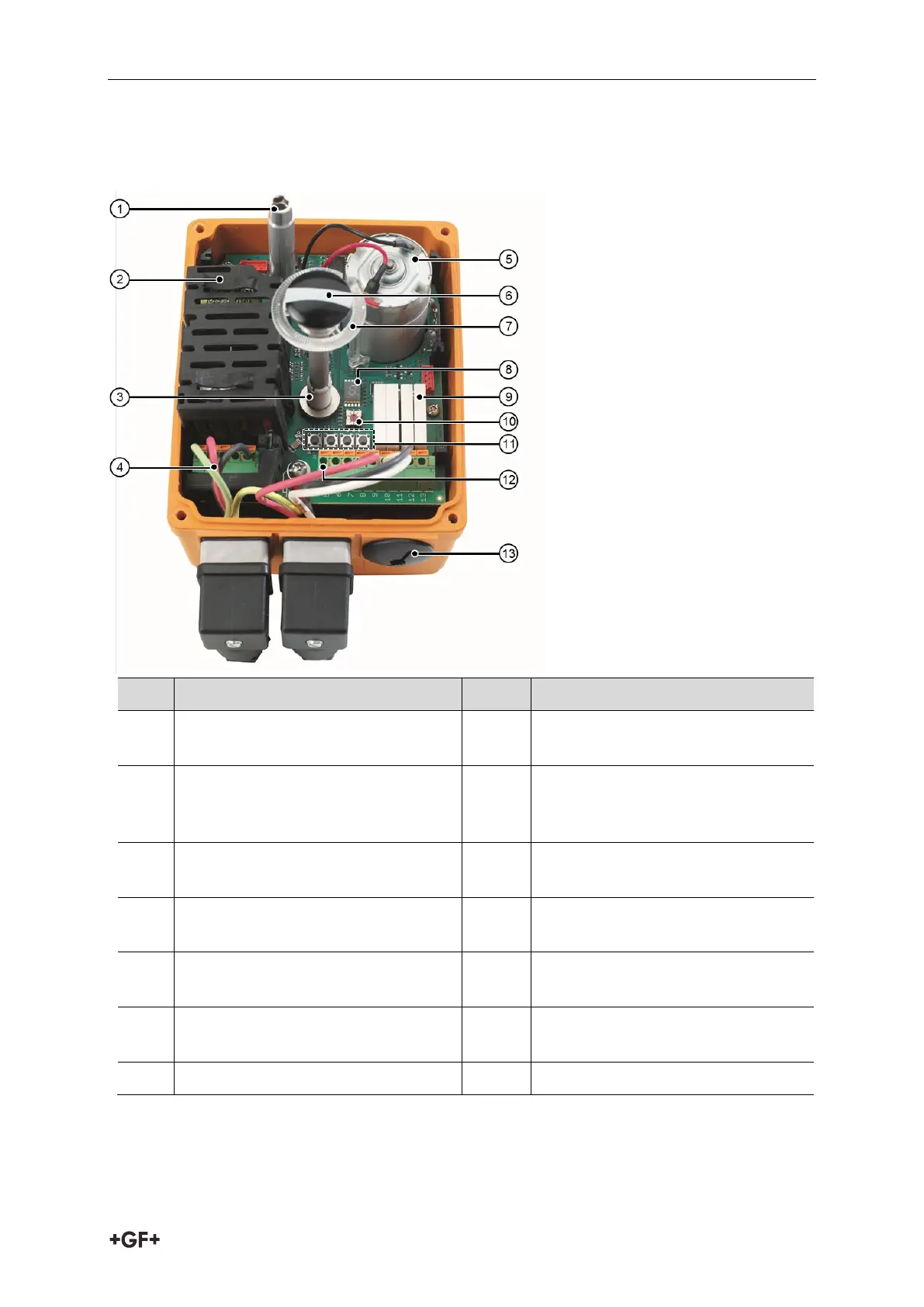

5 Design and function
5.1 Design
Item Name Item Name
1
Shaft for emergency manual
override hand crank
8
7 segment error display
2
Power supply with cover (100 230
V version shown)
9
Relays for position feedback
OPEN/CLOSE/MIDDLE/ready-to-
operate
3
Digital position detection
10
Heating element (temperature
threshold control)
4
Control power for
OPEN/CLOSE/MIDDLE position
11
Buttons for end position
adjustment
5
DC motor
12
Terminal block to connect position
feedback
6
Optical position indicator
13
Connections for DIN plug or cable
gland
7
Light tube for LED status feedback
