GF EA Series - Buttons for setting the end positions

Instruction manual Design and function
49
5.3.3 Buttons for setting the end p o s i t i o ns

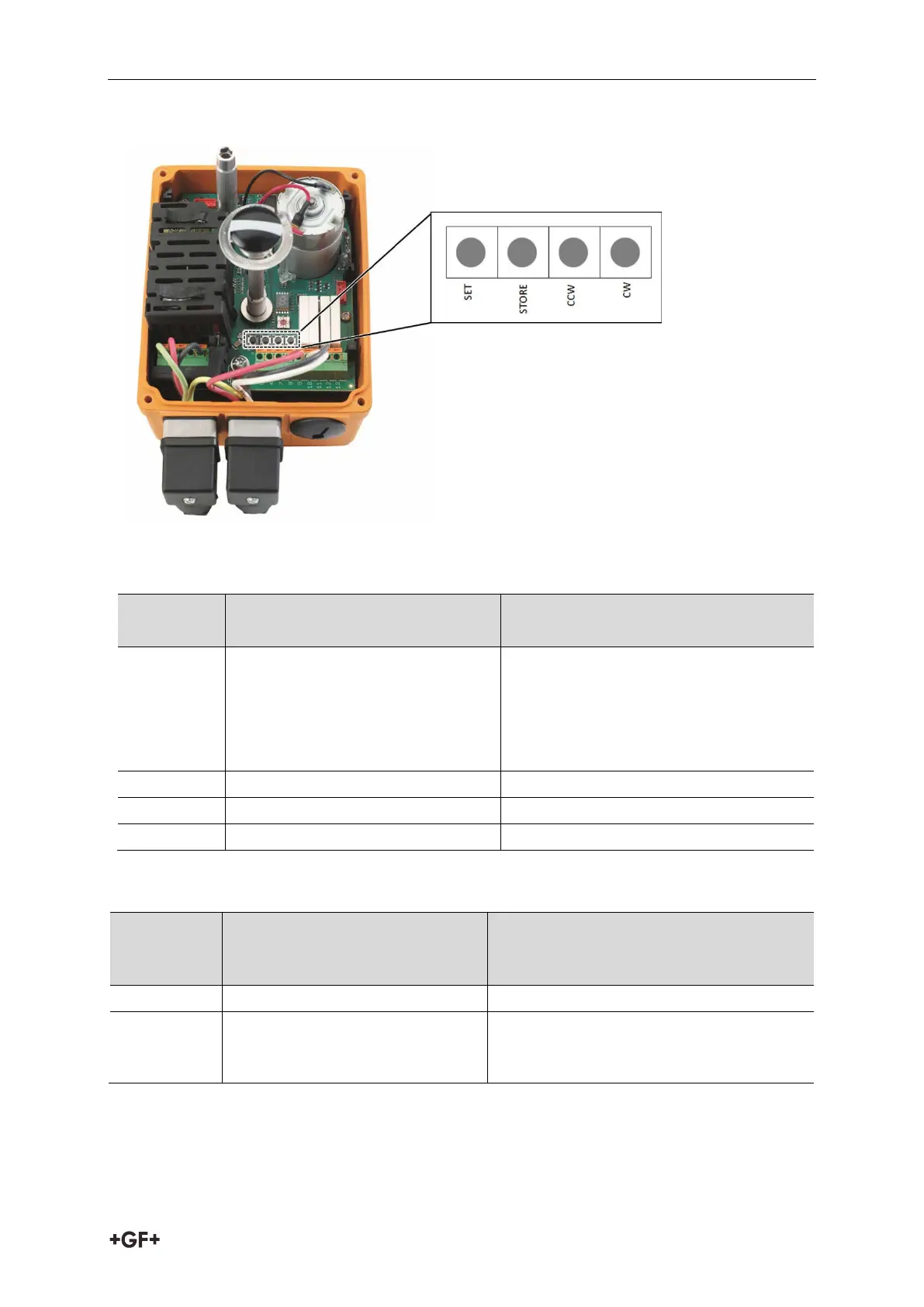

Buttons for setting the end positions inside the actuator
The following table describes the functions of buttons shown above:
Button
Adjustment mode
(“SET” button pressed for ~3 s)
Error mode
LED flashes yellow
SET Press the button, until the color
of the LED of which the
assigned position is to be
changed lights up (e. g. green –
CLOSE)
Acknowledge
the error (instead of
disconnecting
the power supply)
STORE
Saving the position moved to
CCW
Moving counterclockwise
CW
Moving clockwise
The following table describes the functions of button combinations:
Button
combination
(press ~3s)
Function Action
SET + CCW LED color assignment Inverting colors
SET + CW Factory reset
Actuator will be set to the values pre-set
at the factory; all positions will be
deleted
