5.3.2 LED status feedback
The LED status feedback shows the valve positions and the current status of the actuator.
The following table shows the color assignment of the LED:

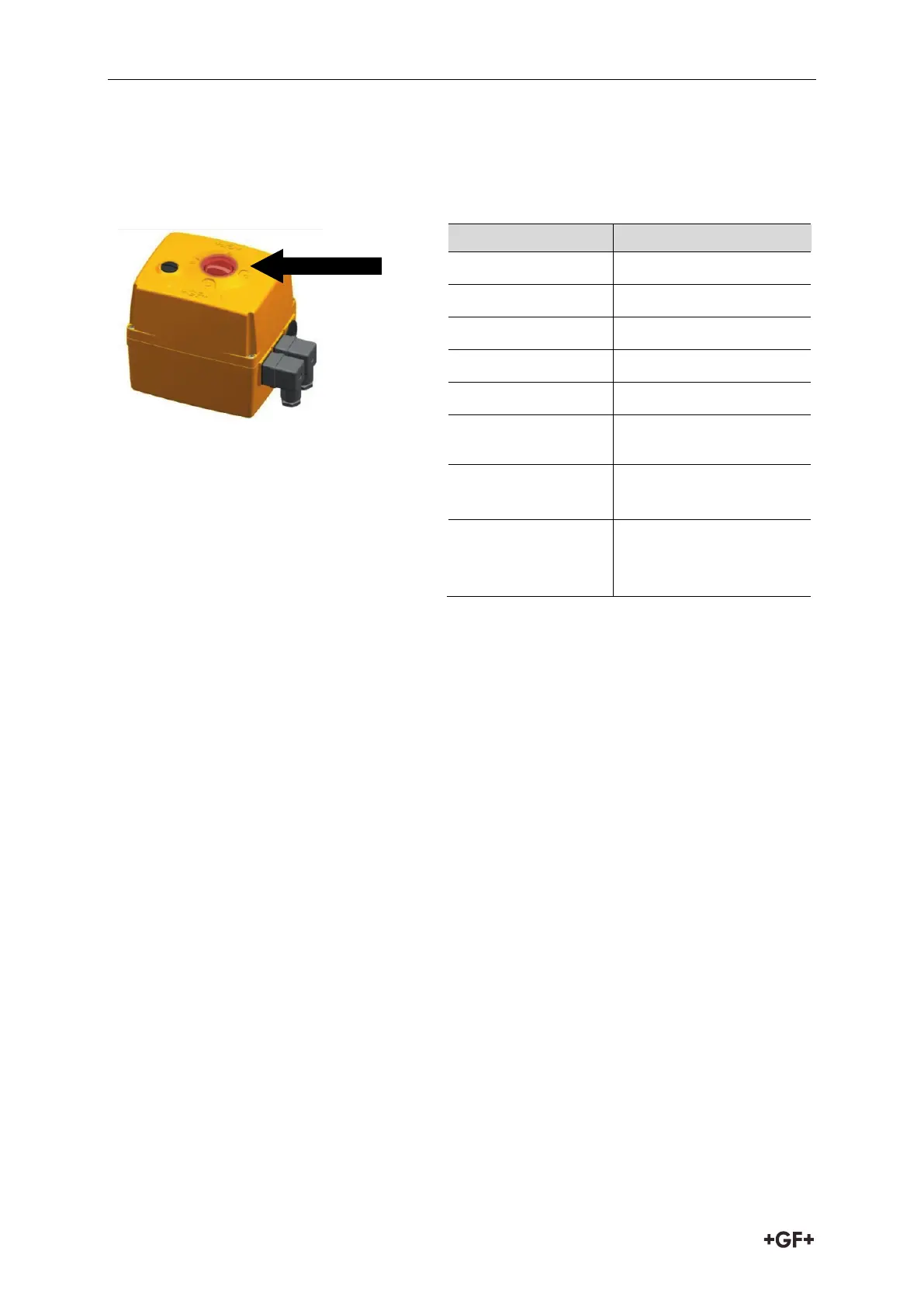

LED status feedback on the actuator
Color
Meaning
Red OPEN position
Green CLOSE position
White MIDDLE position
Flashes white Actuator moves
Flashes yellow Fault
Flashes blue Learning mode
Green/yellow
Setpoint value reached
(at positioner)
Turquoise
Adjustment run /
operation of color
inversion
The color assignments are valid in any case – even when colors have been inverted later by
customer. If the plant standard requires an inversion of the color assignment, the customer
can adjust this afterwards; see Chapter “Inverting LED color assignment”.
