Gilson GX-271 Liquid Handler User’s Guide 2-15
Installation 2
Rear Panel Connections
Rear Panel Connections
The following sections provide detailed information on making rear panel connections.
• For the GX-271 Liquid Handler, refer to page 2-15
• For the GX Solvent System (optional) refer to page 2-8
• For the 402 Syringe Pump (optional) refer to page 2-22
• For the GX Rinse Pump (optional) refer to page 2-24
• For the GX Direct Injection Module (optional) refer to page 2-25
GX-271 Liquid Handler Rear Panel
Refer to the diagram below when making the connections described in this section.

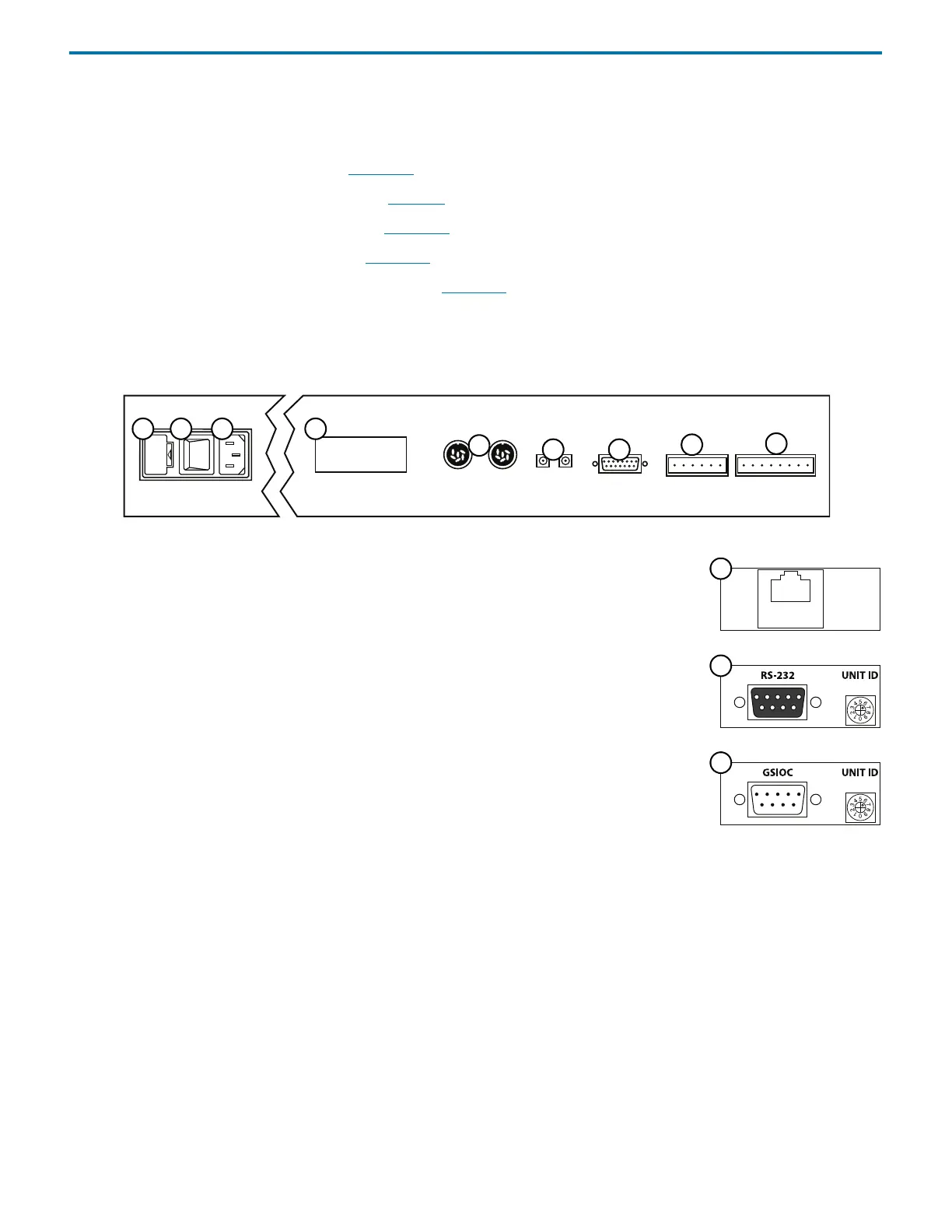

Figure 2-30: GX-27X Liquid Handler Rear Panel—Partial
1 Fuse drawer
2Power switch
3Power receptacle
4 Communication
a) Ethernet
b) RS-232
c) GSIOC
5 GSIOC accessories
6 Solenoid valve (not used)
7Z-arm
8 Input ports and safety
9 Output ports
1 2 3 4
5
6 7
8
9
a
b
c
Figure 2-31:
Communication Options
