Gilson GX-271 - Z-Arm, Fuse, and Power Connections

Gilson GX-271 Liquid Handler User’s Guide 2-27
Installation 2
Rear Panel Connections
Z-Arm Connection
Connect the cable from the Z-arm to the Z-ARM port on the rear panel of the liquid handler. Refer to the diagram on page 2-15
for the location of this port.
Fuse Installation
1 Locate the fuse drawer and two of the supplied fuses.
2 Install the fuses in the fuse drawer.
3 Insert the fuse drawer into its receptacle in the liquid handler. See rear panel
diagram on page 2-15
.
Power Cord Connection
Locate the appropriate power cord for your line voltage.
Use the power cord to connect the liquid handler to a power source.

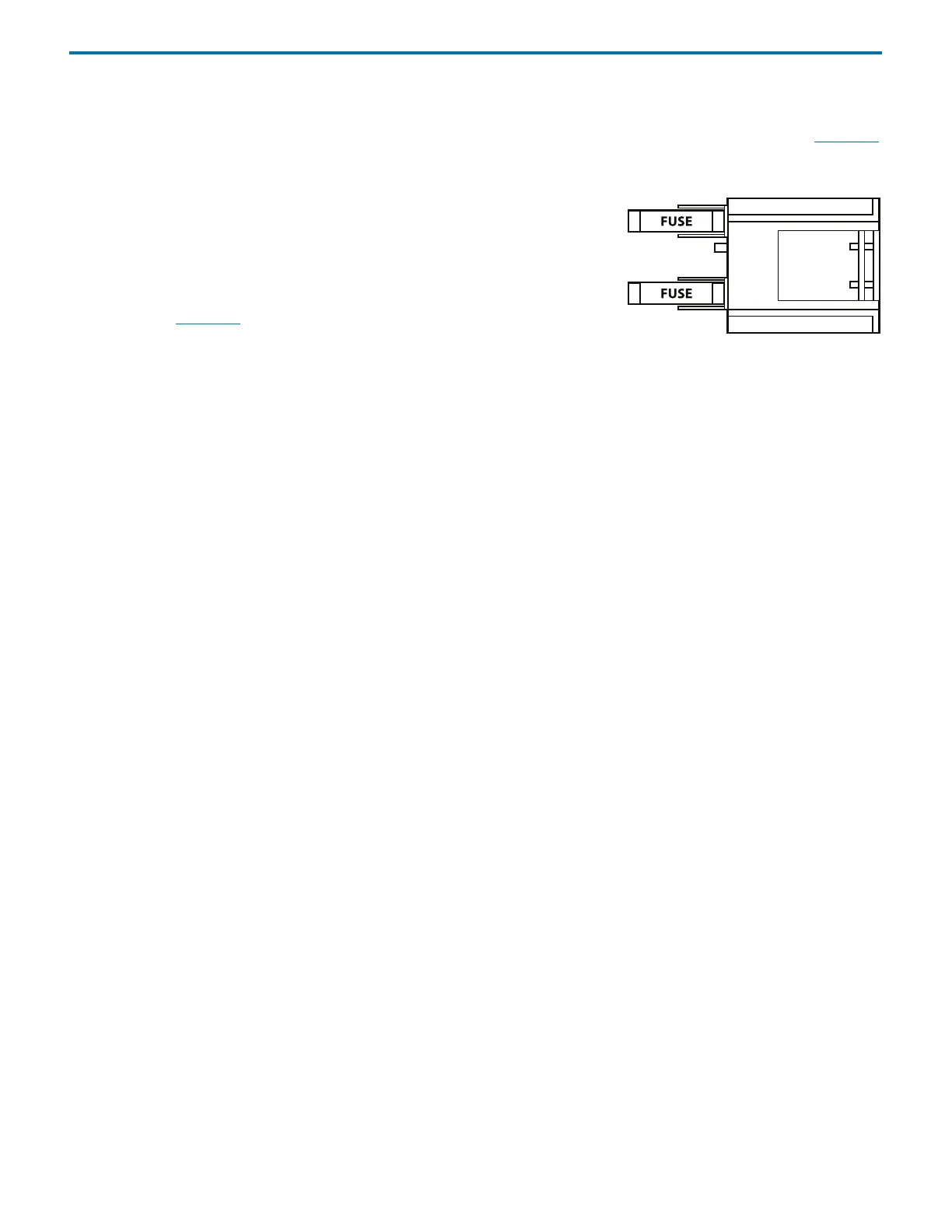

Figure 2-48: Fuse Installation
