GMI PS200 series User Manual

5-5
OPERATOR MAINTENANCE

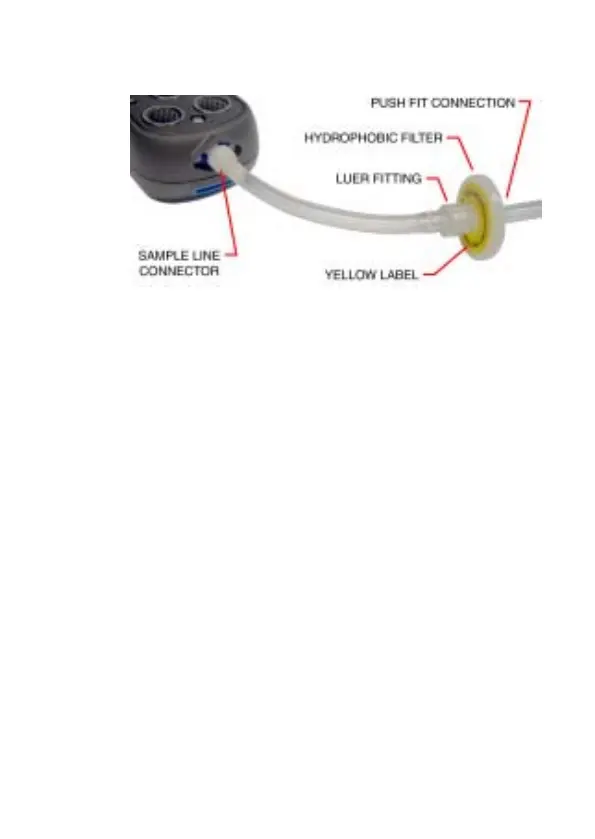

Fig. 5.3 In-line Hydrophobic Filter
To replace the filter, proceed as follows:
1) Unscrew the luer fitting from one side of the the filter
in a counter clockwise direction, detach the tubing
from the other side then remove the hydrophobic
filter.
Note: If re-fitting the same filter, make sure that filter
direction of flow orientation is maintained. This can be
easily identified by position of yellow label on filter,
i.e. facing instrument.
2) Fit a new In-line Hydrophobic Filter (Part No. 66484).
Note that the filter should be fitted with the yellow
label facing the instrument.
3) Attach the luer fitting, with sample line attached, to
the mating side of the filter then tighten in a clockwise
direction to secure. Do not overtighten the fitting.
4) Attach the sample line to the other side of the filter
making sure that it is securely fitted.

GMI PS200 series Specifications

General

Display	LCD
Alarm Type	Audible, visual, and vibration alarms
Resolution	Depends on the gas being detected
Accuracy	Varies depending on the gas and sensor. Consult the specific sensor datasheet.
Operating Temperature	-20°C to +50°C
Power Supply	Rechargeable Li-ion battery
Pump Type	Built-in sample pump
