KB300 / KB350 with FS560
Translation of the original operating instruction and spare parts list
- 11-
5006892-01
BA-E
®
2. Description

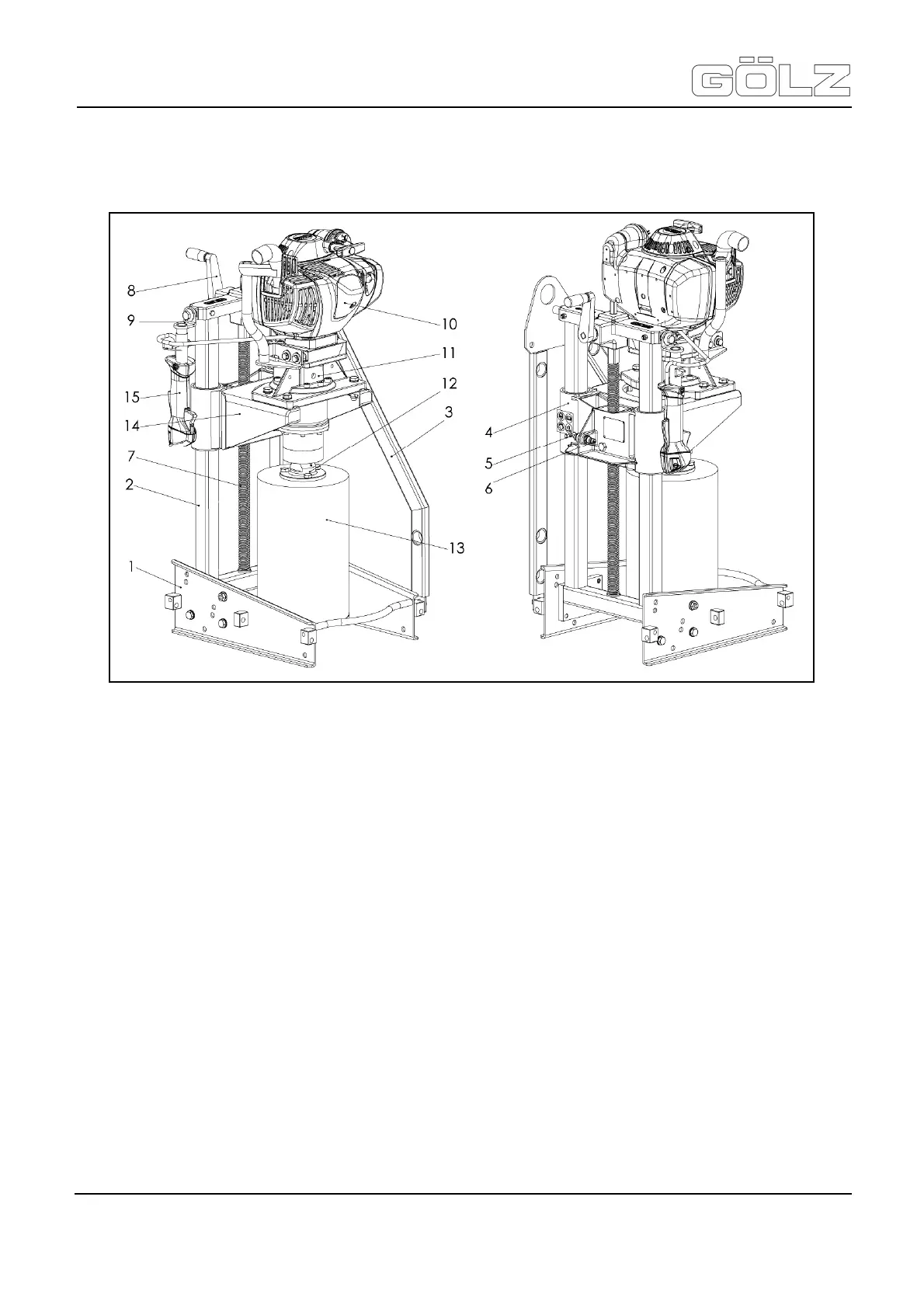

2.1 Main parts
2.2 Functional description
Due to its compact design and its lightweight construction, the KB300/350 unit with FS560 offers a practice-
oriented use in a tight space. The proven STIHL
®
-Drive and the GÖLZ
®
-System-Technology ensure highest
operational safety and economic efficiency.
The KB300/350 with FS560 is used as a channel core drill for drills up to Ø 300 respectively Ø 350 mm for
manufacturing sewer pipes and manholes, for manufacturing new channels on the construction site as well as
for manufacturing later channel house connections.
Due to the fact that this unit is operated by the STIHL
®
FS560 gasoline-combustion engine the unit can be used
independently of power supply networks and irrespectively of its position.
To be able to operate this combustion engine also in a tight space, the supplied exhaust gas hose is fixed to the
motor so that exhaust gases can be discharged.
1) Pipe base 6) Water coupler 11) Planetary gear
2) Column 7) Spindle 12) 3-hole-flange
3) Floor frame with 8) Handle 13) Drill bit
lifting eye
4) Carriage 9) Control holder 14) Gear box carrier
5) Water tap 10) Petrol engine 15) Handlebar
