GDR11 Digital TV receiver

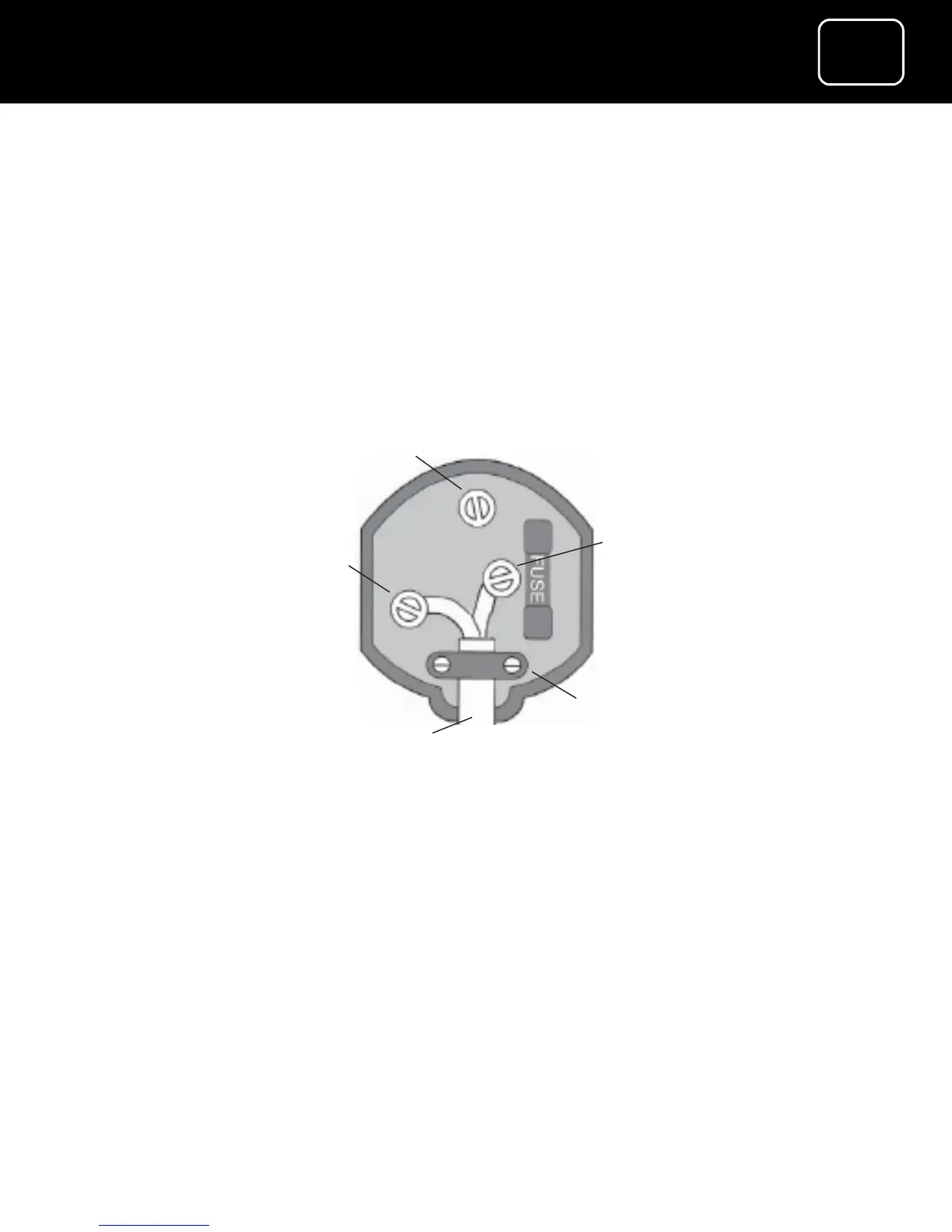

• You should not connect anything to the earth terminal of the
plug marked with the letter ‘E’ or coloured green.
You must always use the same fuse value as your receiver’s
power-lead plug if you replace it.
Blue
(neutral)
Brown
(live)
No connection
(earth)
N
E
L
Cable grip
The plug should be approved to
British Standards (BS1363/A).
Fit a 3-amp fuse.
Make sure the outer sheath of the mains cable
is securely held by the cable grip
Mains cable
