Dispense System Component Identification
12 333587B
Tandem Ram
NOTE: FIG. 2 shows a typical E-Flo iQ dispense system
installation with a Tandem iQ ram supply unit, hoses,
connectors, and an iQ dispense valve. Some
installations may not require Supply Hose 2 (D) to iQ
Dispense Valve (B) depending on the needs of the
system.
Key:
A iQ Ram Supply Unit 1
B iQ Dispense Valve
C Supply Hose 1
D Supply Hose 2
E Tandem Block Fitting to Supply Hose 1
F Supply Hose 1 Fitting to Supply Hose 2
G Supply Hose 2 Fitting to Swivel
H Swivel Fitting
J Swivel Fitting to Valve
K iQ Ram Supply Unit 2
L Tandem Hose 1
M Tandem Hose 2
N Ram Supply Unit 1 Fitting to Tandem Hose 1
P Ram Supply Unit 2 Fitting to Tandem Hose 2
R Tandem Block
S Ball Valves
* Applies to heated hoses only.

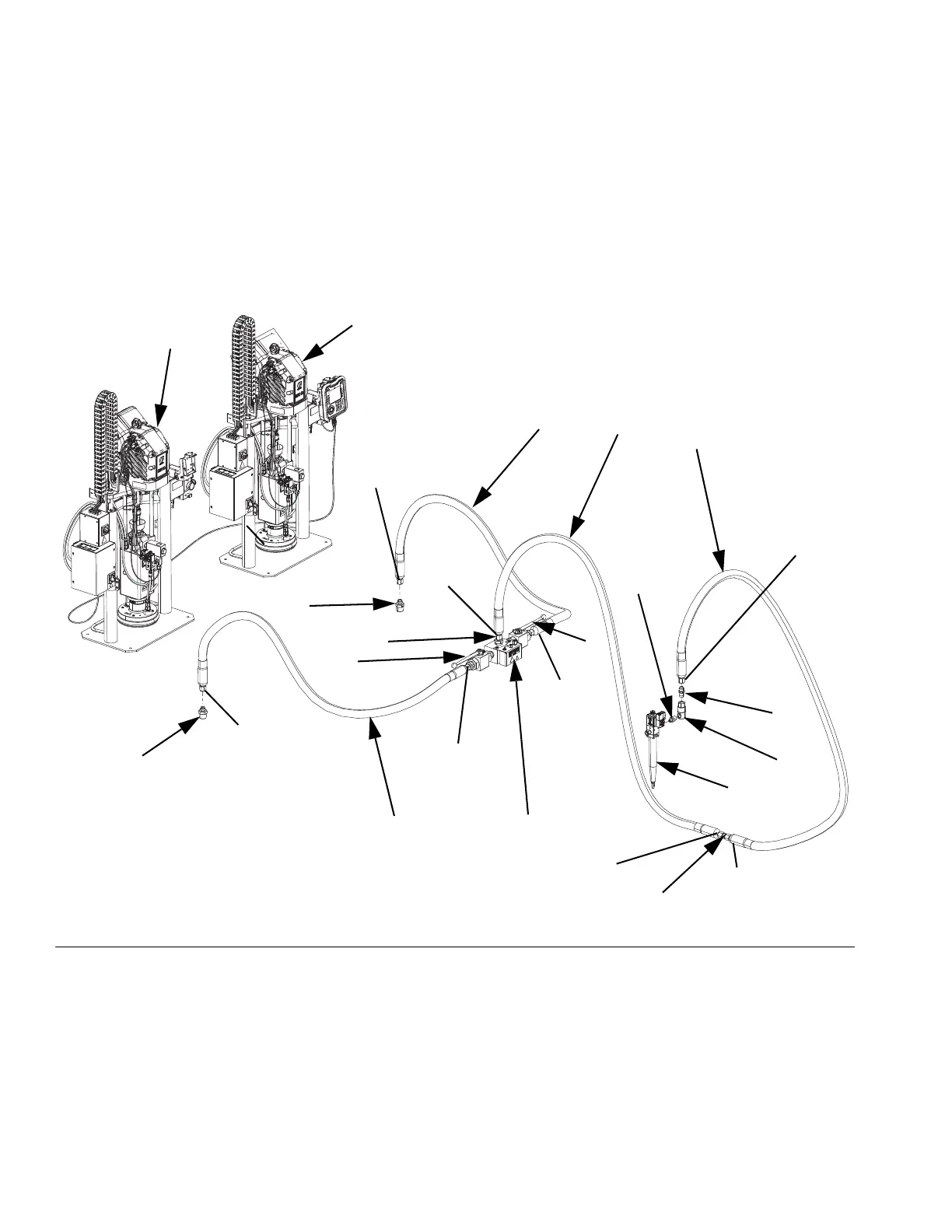

FIG. 2: Tandem E-Flo iQ Dispense System
A
B
M
D
F
G
H
J
K
L
R
C
E
N
P
*Circular
Electrical
Connection
*Square
Electrical
Connection
*Circular
Electrical
Connection
*Square
Electrical
Connection
*Circular
Electrical
Connection
*Square
Electrical
Connection
*Circular
Electrical
Connection
*Square
Electrical
Connection
S
S
