Supply Unit Component Identification
14 333587B
Power Disconnect
Every E-Flo iQ Dispense System has a red and yellow
Disconnect Switch which shuts off power to the entire
system. The location of the switch is different for
ambient and heated systems. See Figure 4.
On ambient systems, the Disconnect Switch (AZ) is
located on the Power Junction Box (AJ).
On heated systems, the Disconnect Switch (AZ) is
located on the Heat Control Box (AX). Heated systems
also have a red and black Power Junction Box Switch
(AK) located on the Power Junction Box (AJ). The Power
Junction Box Switch (AK) removes power to everything
EXCEPT heat. The Disconnect Switch (AZ) removes
power to the entire system, including heat.

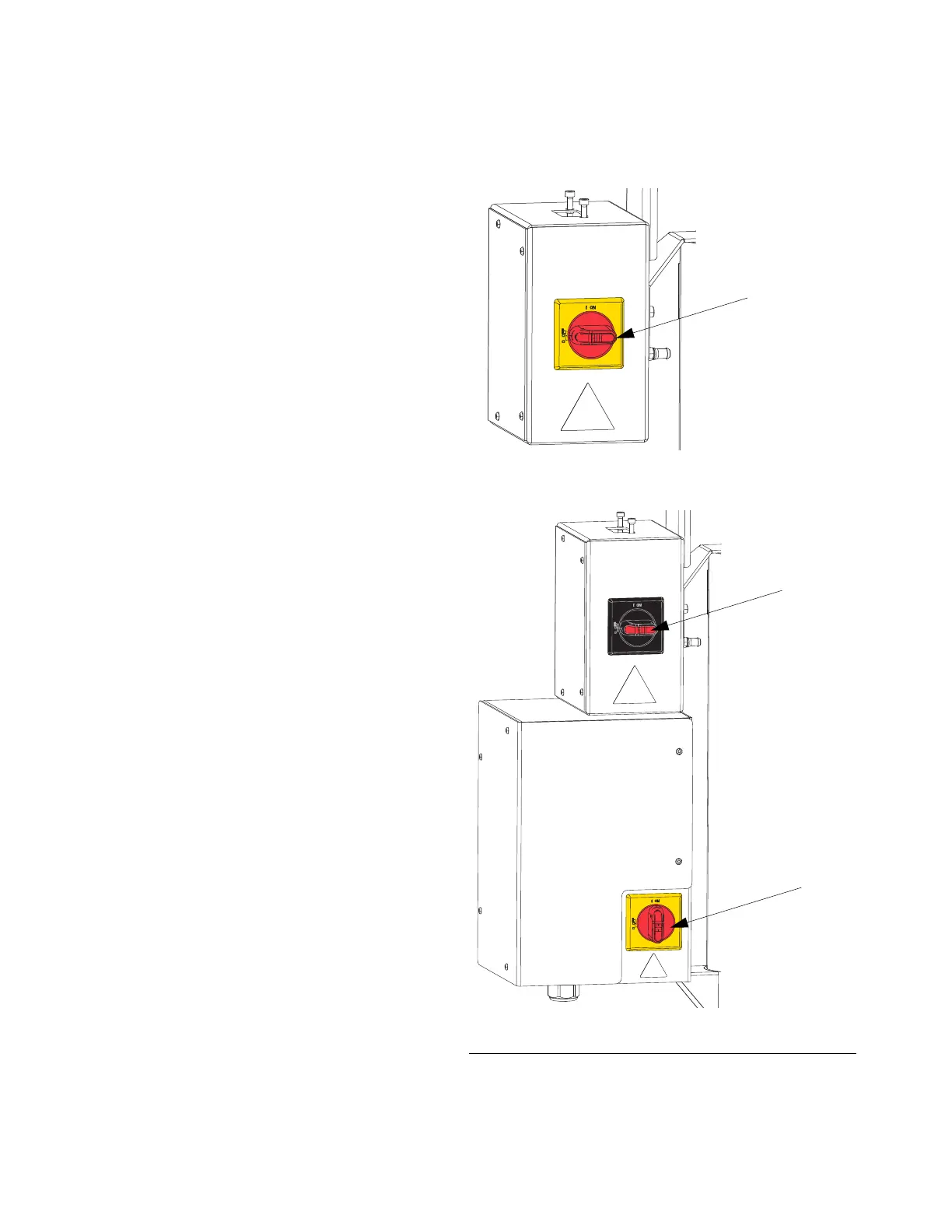

F
IG. 4. Power Disconnect
AK
AZ
Heated System
AZ
Ambient System
