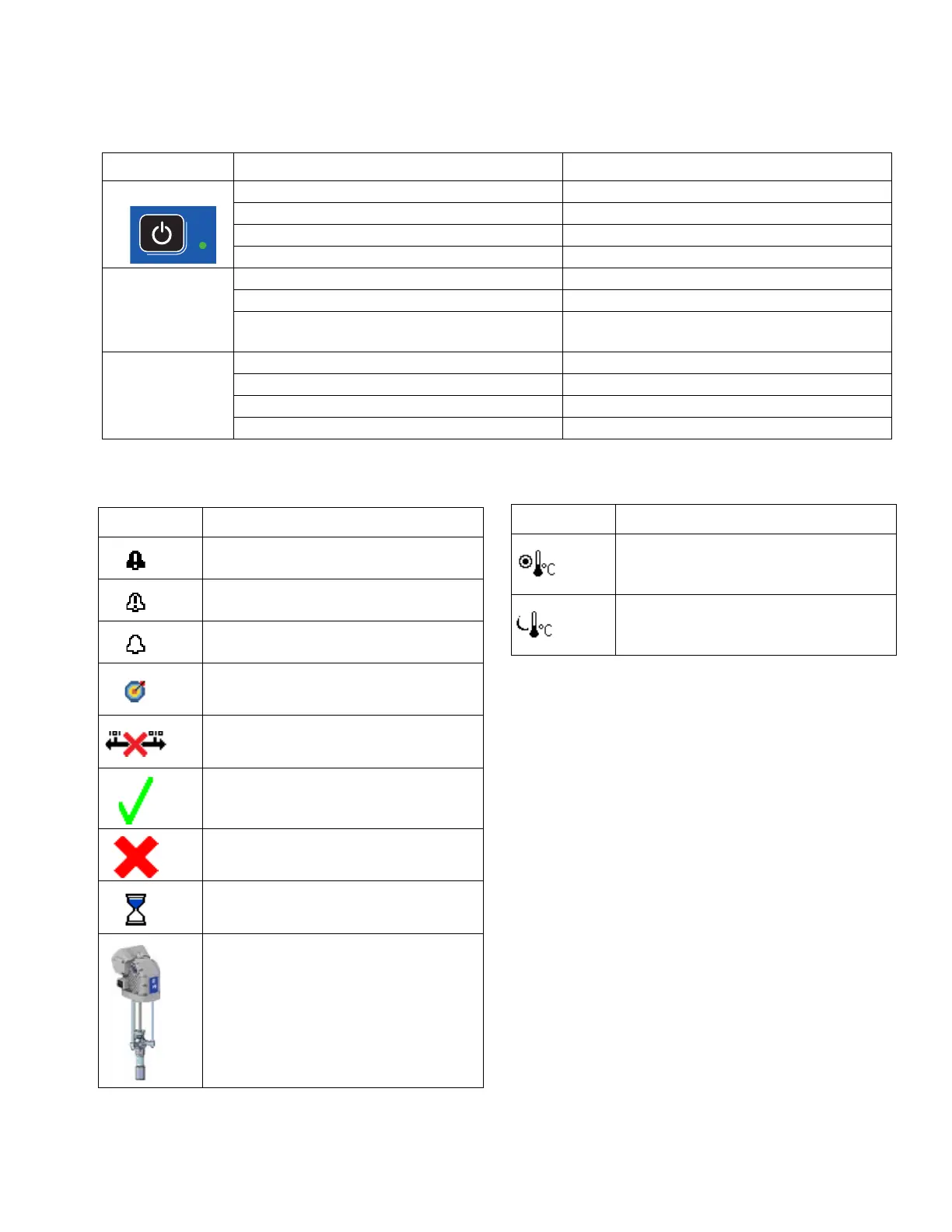

ADM Display Details
333587B 19
ADM LED Status Descriptions
ADM Icons
LED Conditions Description
System Status Green Solid Run Mode, System On
Green Flashing Setup Mode, System On
Yellow Solid Run Mode, System Off
Yellow Flashing Setup Mode, System Off
USB Status (CL) Green Flashing Data recording in progress
Yellow Solid Downloading information to USB
Green and Yellow Flashing ADM is busy, USB cannot transfer information
when in this mode
ADM Status (CN) Green Solid Power applied to module
Yellow Flashing Active Communication
Red Steady Flashing Software upload from token in progress
Red Random Flashing or Solid Module error exists
Icon Function
Alarm - See Troubleshooting, page 53
for more information.
Deviation - See Troubleshooting, page
53 for more information.
Advisory - See Troubleshooting, page
53 for more information.
Target for primary pressure and flow.
Only displayed in priming mode.
Communication Error
No issues found with parameter or
setting value
Missing or unexpected parameter or
setting value
System is processing request
(animated)
Pump position (animated). The pump
coupler will move up and down in real
time and indicate the approximate
position of the pump. The pump will
need to complete one full down stroke
upon each power cycle before the
position is valid.
Zone setpoint temperature showing the
temperature the zone heats too when
the heat is turned on.
Zone setback temperature showing the
setback the zone goes to when the heat
is in setback mode.
Icon Function
