Graco E-Flo iQ - Power Reset Diagram; Heat CGM Timing Diagram

Integration
90 333587B

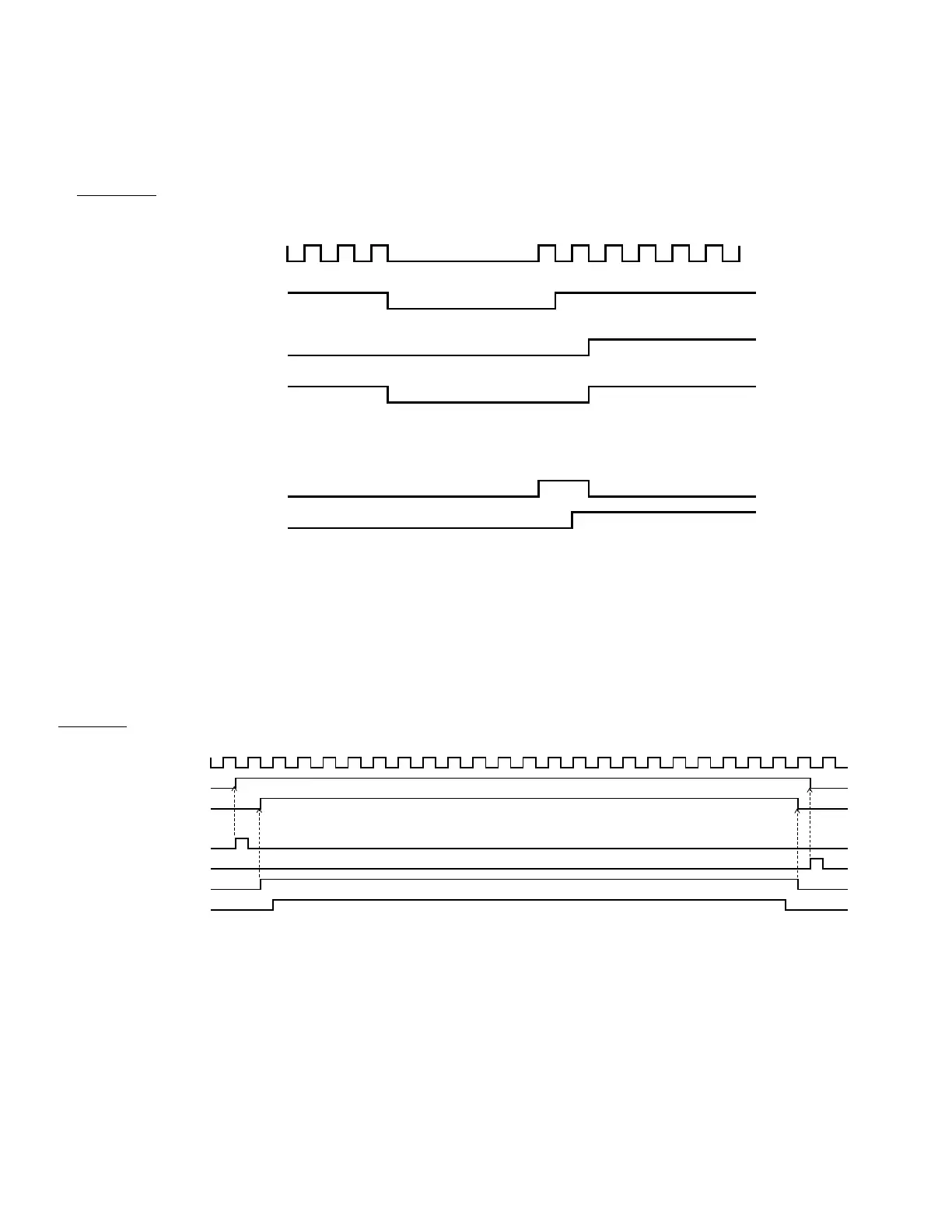

Power Reset Diagram
Heat CGM Timing Diagram
Power Reset
Automation Inputs (E-Flo SP Outputs)
Heart Beat (1Hz)
System Active
Automation Control Ready
PLC Lockout Active
Automation Outputs (E-Flo SP Inputs)
System Enable / Remote Start Request
PLC Control Lockout
Offline
Heat CGM Timing
Automation Inputs (E-Flo iQ Outputs)
Heart Beat (1Hz)
System Heat Active
Heat PLC Lockout/Active
Automation Outputs (E-Flo iQ Inputs)
System Heat Enable Request
System Heat Disable Request
Heat PLC Lockout/Control
Other Automation Outputs Instances
භ
භ
and "Heat Module Data Exchanged Command Desired Value"
Notes:
"System Heat Enabled Request", "System Heat Disable Request" and "Heat Module Data Exchange Command " will be accepted with out the
"Heat PLC Lockout/Control" set high, any other Automation Outputs Instance needs to have the "Heat PLC Lockout/Control" set high
for the Automation Output Instance to be accepted by the iQ Heat Controller
Other Automation Output Instances includes, "Heat On Request", "Heat Off Request", "Heat Setback Request", "Acknowledge/Clear Heat Errors",
