Graco E-Flo iQ - System Enable - Remote Start Diagram; Acknowledge - Clear Error Diagram

Integration
88 333587B

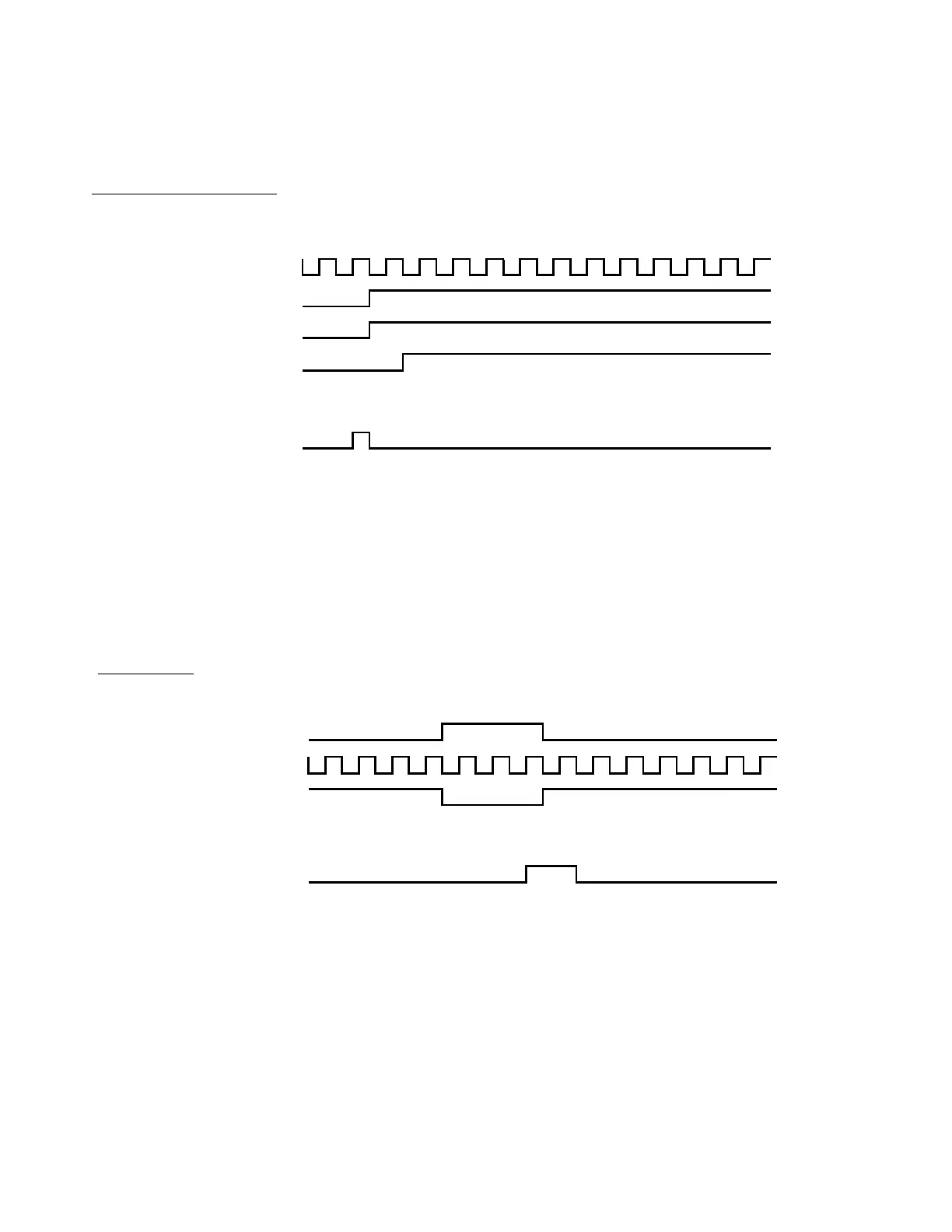

System Enable - Remote Start Diagram
Acknowledge - Clear Error Diagram
System Enable-Remote Start
Automation Inputs (E-Flo iQ Outputs)
Heart Beat (1Hz)
System is Active
No Alarms Active
¸$XWRPDWLRQ&RQWURO5HDG\
Automation Outputs (E-Flo iQ Inputs)
System Enable Request
Note:
¸7KHV\VWHPPXVWEHLQUHPRWHPRGH
Ack-Clear Error
Automation Inputs (E-Flo iQ Outputs)
Data Exchange - Alarms (integer/bitfield)
Heart Beat (1Hz)
No Alarms Active
Automation Outputs (E-Flo iQ Inputs)
Acknowledge/clear errors
