Graco E-Flo iQ - Manual Crossover Diagram; Data Exchange Diagram

Integration
333587B 89

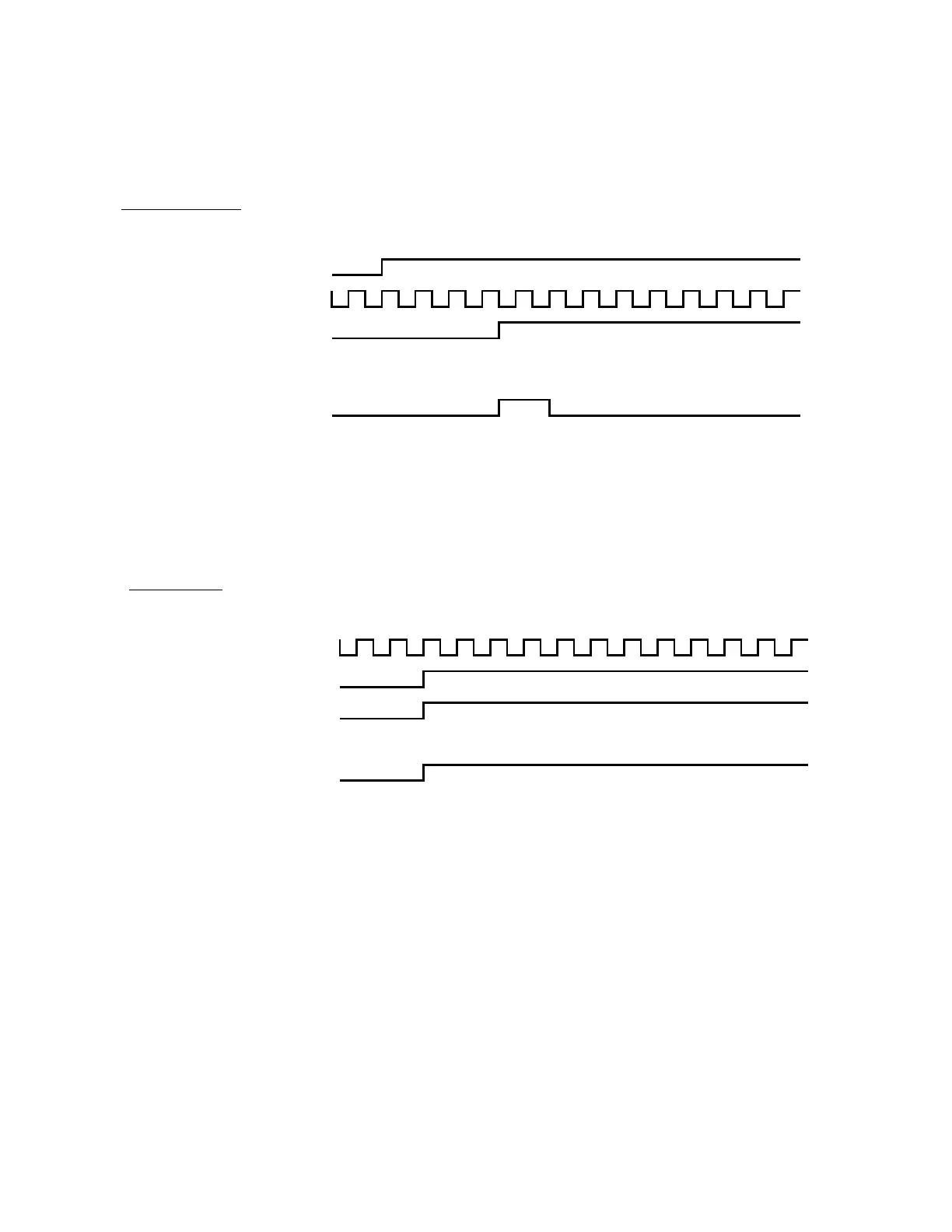

Manual Crossover Diagram
Data Exchange Diagram
Manual Cross Over
Automation Inputs (E-Flo iQ Outputs)
Low Level Pump 1 (example)
Heart Beat (1Hz)
Tandem Active Pump
Automation Outputs (E-Flo iQ Inputs)
Cross Over Request
(Pump 1 Active)
(Pump 2 Active)
Data Exchange
Automation Inputs (E-Flo iQ Outputs)
Heart Beat (1Hz)
Data Exchange Active Command
Data Exchange Active Command Value (5Hz)
Automation Outputs (E-Flo iQ Inputs)
Data Exchange command (integer)
