Supply Unit Component Identification
333587B 15
Integrated Air Controls (AG)
The integrated air controls include:
• Main Air Slider Valve (BA): turns air on and off to
the system. When closed, the valve relieves pres-
sure downstream.
• Ram Air Regulator (BB): controls Ram up and
down pressure and blowoff pressure.
• Ram Director Valve (BC): controls Ram direction.
• Exhaust Port with Muffler (BD)
• Blowoff Button (BE): turns air on and off to push
the Platen (D) out of an empty drum.
Integrated Air Line Accessories
See Figure 3.
• Air Line Drain Valve (AS): removes condensed
water from the air line. Not supplied.
• Air Line Filter (AT): removes harmful dirt and mois-
ture from the compressed air supply. Not supplied.
• Second Bleed-type Air Valve (AU) (required): iso-
lates Air Line accessories for servicing. Locate
upstream from all other Air Line accessories. Not
supplied.

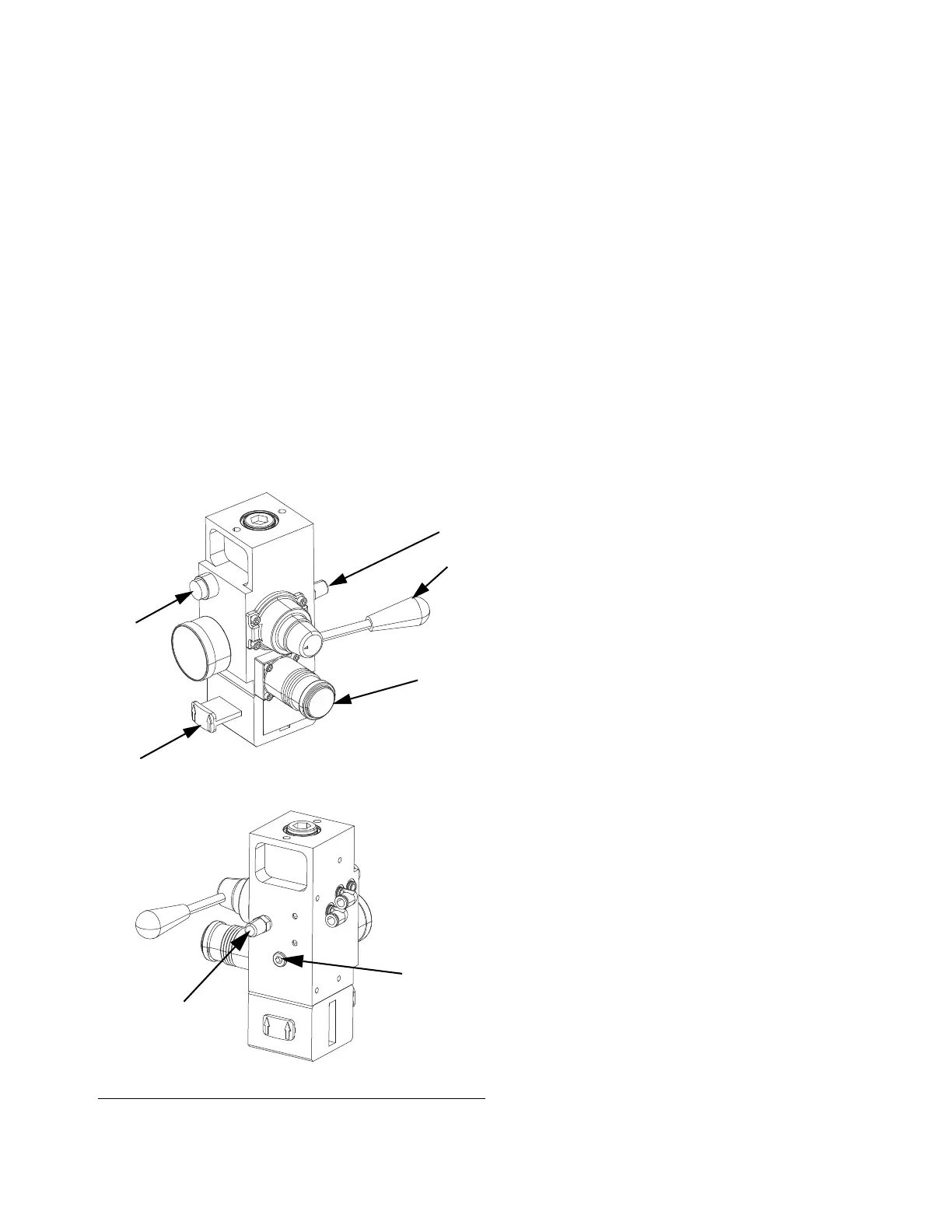

F
IG. 5. Integrated Air Control Module
