Supply Unit Component Identification
333587B 13
Supply Unit Component Identification
iQ Ram Supply Unit
D200 3 in. Dual Post Shown
Key:
AA Ram Assembly
AB Electric Driver
AC Displacement Pump
AD Platen
AE Fluid Check Valve
AF Advanced Display Module (ADM)
AG Integrated Air Controls (see Figure 6)
AH Platen Bleed Port
AJ Power Junction Box
AK Power Junction Box Switch
AL Platen Lift Rod
AM Pump Bleed Valve
AN Wet Cup
AR Air Line (not supplied)
AS Air Line Drain Valve (not supplied)
AT Air Filter (not supplied)
AU Bleed Type Air Shutoff Valve (required) (not supplied)
AV Level Sensors
AW Outlet Pressure Transducer
AX *Heat Control Box
AY Platen Valve Kit (optional)
AZ Disconnect Switch (See Power Disconnect on page 14)
ZA *Pump Heater
ZB Recirculation Hose
* Parts on heated systems only.

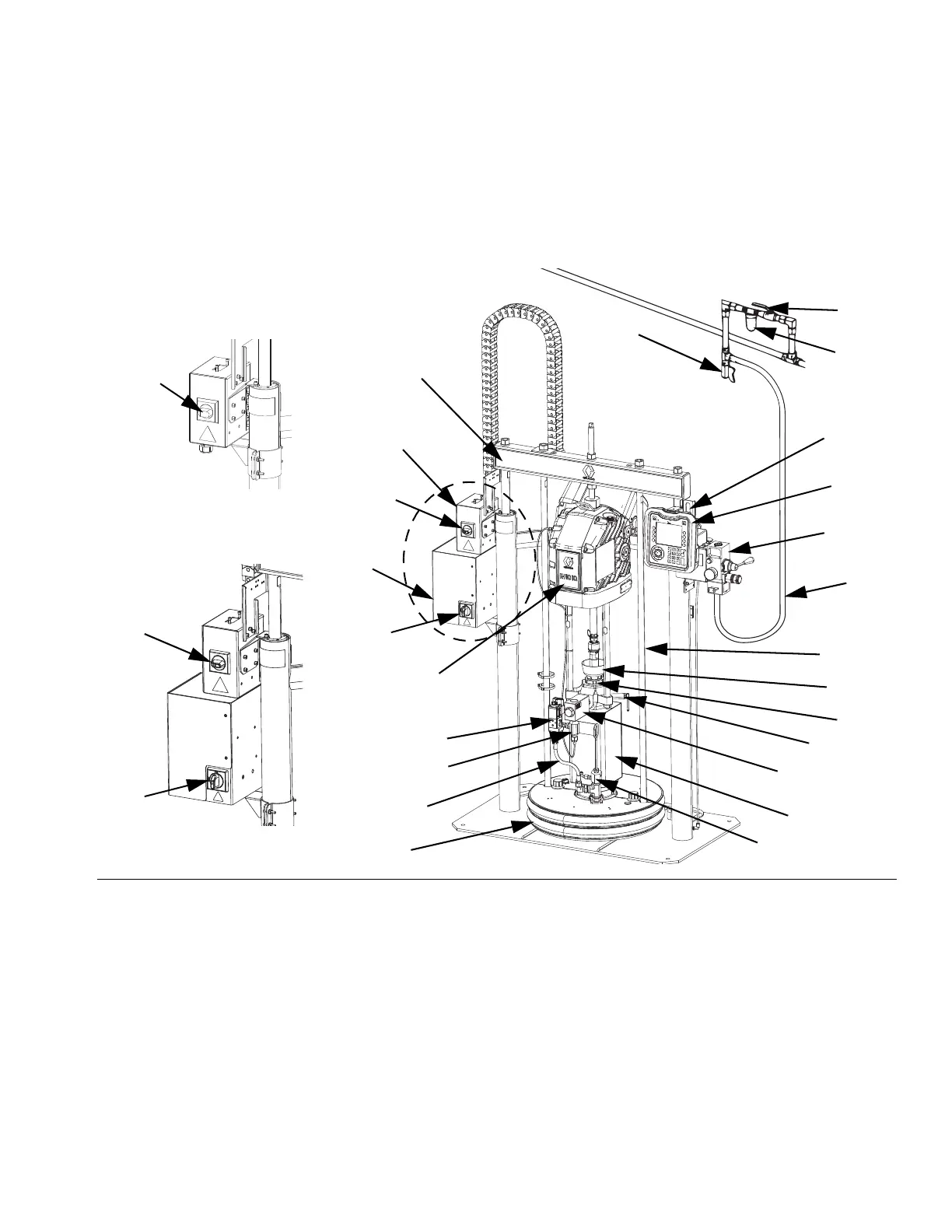

FIG. 3: iQ Ram Supply Unit
AU
AT
AS
AA
AB
AV
AF
AG
AR
AN
AM
AD
AJ
AK
*AX
AL
*ZA
AZ
AY
AC
AE
AW
ZB
Ambient System
AZ
Heated System
AZ
AK
AH
