Graco PrecisionSwirl - Typical Installation - Multiple Fluid Plates, Multiple Swirl Dispensers

System Configurations
3A2098S 15
Typical Installation - Multiple Fluid Plates, Multiple Swirl Dispensers
Key:
A *Control Center (User Interface)
B *Fluid Plate Assembly
C Applicator/Dispense Valve
DSealer Automation
E Automation Interface Cable
F *CAN Cable
G Fluid Supply System
H Fluid Supply Hose
J Automation Controller
K *Air Filter Assembly
L PrecisionSwirl Orbital Dispenser (Swirl Dispenser)
M PrecisionSwirl Cable
N Expansion Swirl Enclosure
O Sealer Automation Control Cable
* Included
 Optional

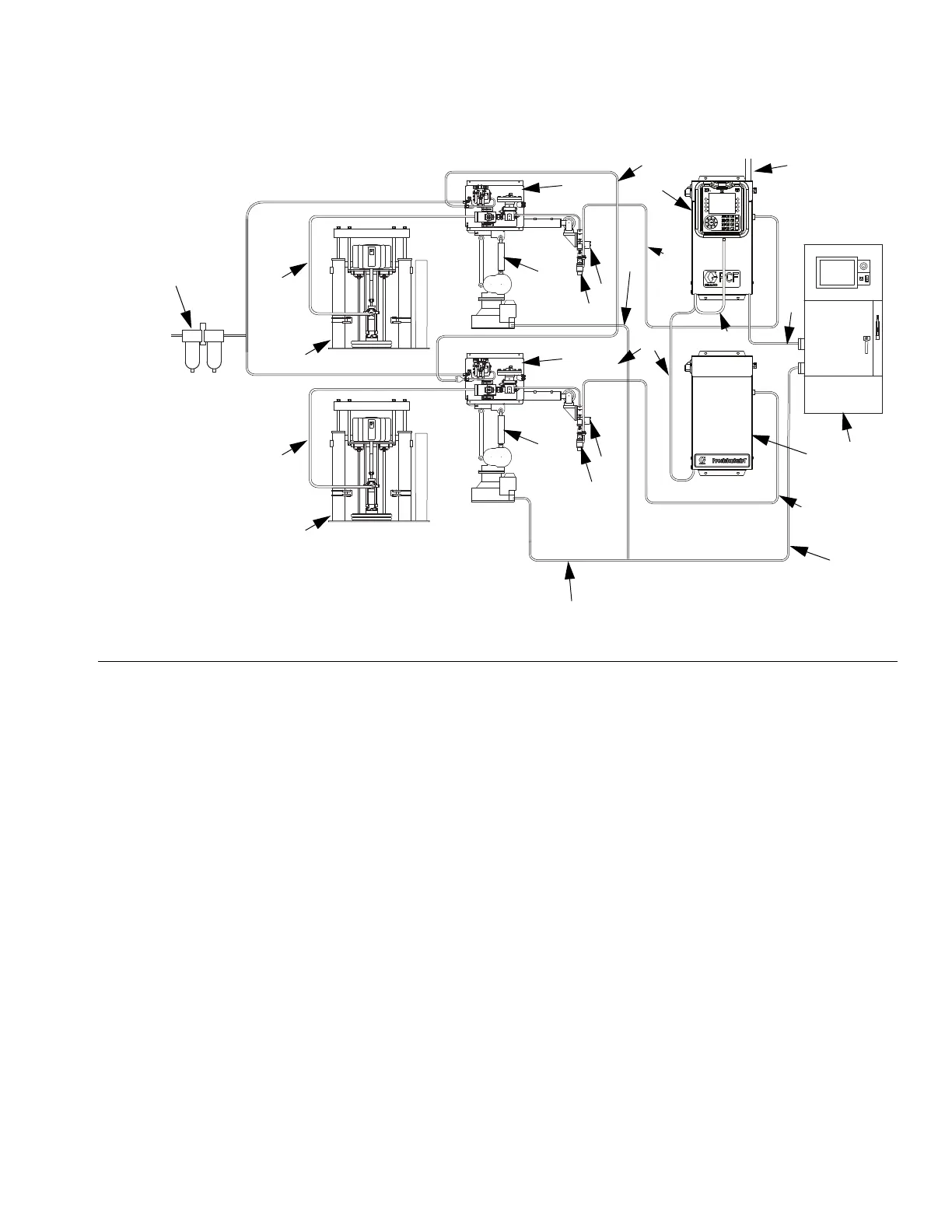

F
IG. 3: Typical Multiple Fluid Plate System Installation
J
Air
Supply
Drop Site
K*
H
Power In
A
E
M
F*
F*
B*
B*
D
C
D
C
H
G
G
F*
N
L
L
M
O
O
O
