Installation
28 3A2098S
Mount Coriolis Flow Meter
NOTE: A Coriolis flow meter only comes with PFxCxx
assemblies.

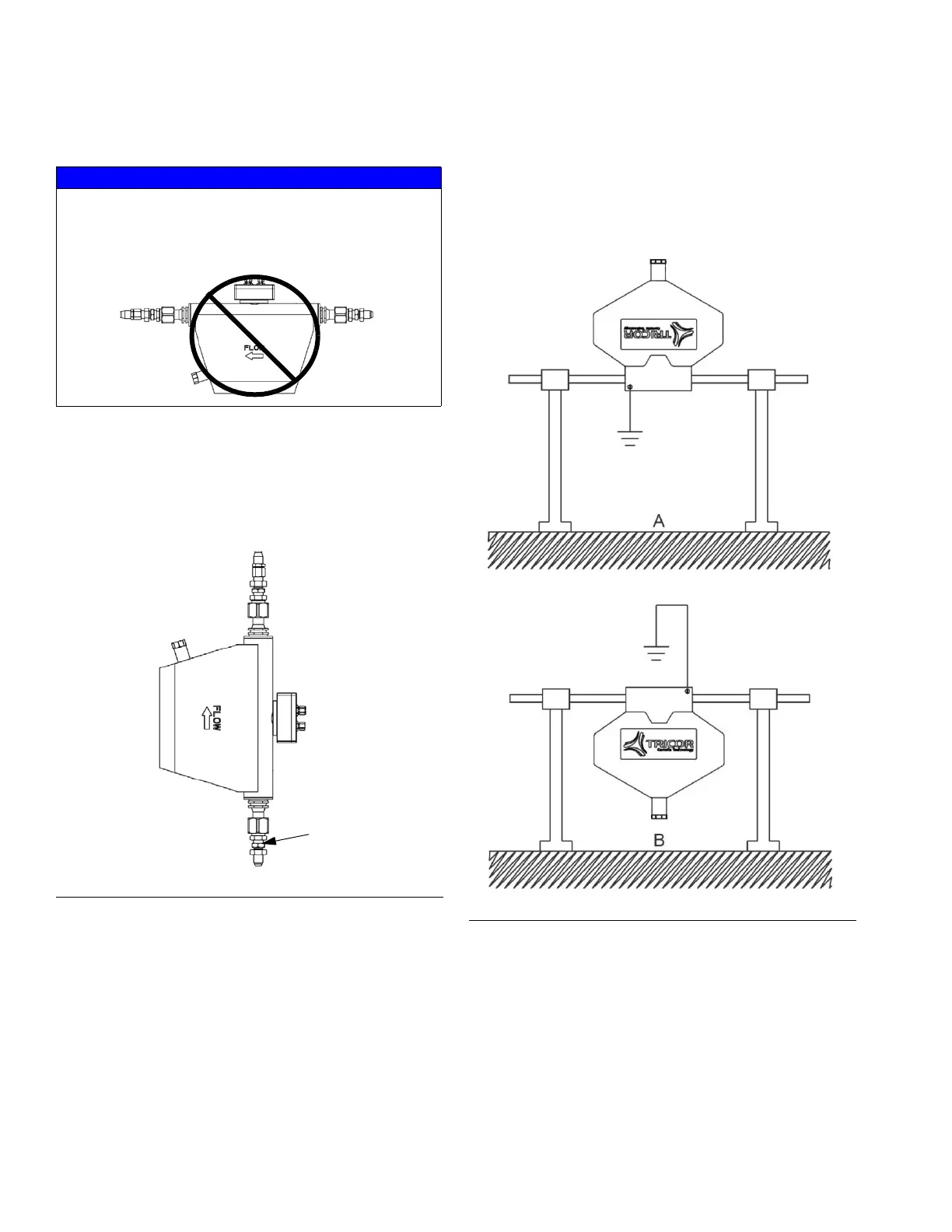

Fluid Flow Upward
Mounting so fluid flow is upward through the meter is
preferred as this allows solids to settle out and air to rise
away from metering tube. See F
IG. 16.
Horizontal Installation
The horizontal installation is the recommended installa-
tion.
If the medium might contain solid particles, mount the
meter as shown in position A, in all other cases as
shown in position B.
NOTICE
See Fluid Plate Assembly Technical Data on page
149 for the weight of your meter. The meter is heavy
and must be properly supported to avoid stress on the
fluid connections.
F
IG. 16. Fluid Flow Upward
FIG. 17.
